Deflector Replacement - Instrument Panel Air-Left

DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR-LEFT

REMOVAL PROCEDURE




1. Remove the left instrument panel (IP) trim plate.

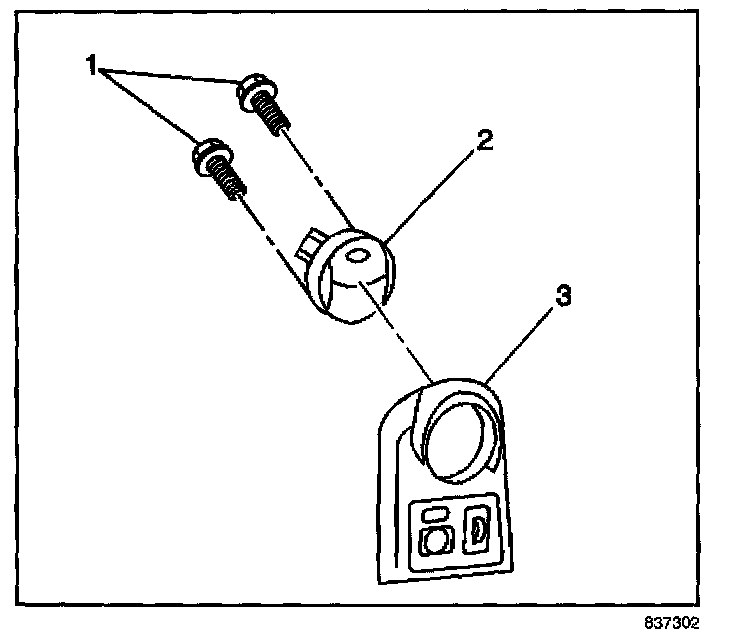

2. Remove the two screws (1) from the deflector assembly (2).
3. Remove the deflector assembly from the IP trim plate (3).

INSTALLATION PROCEDURE

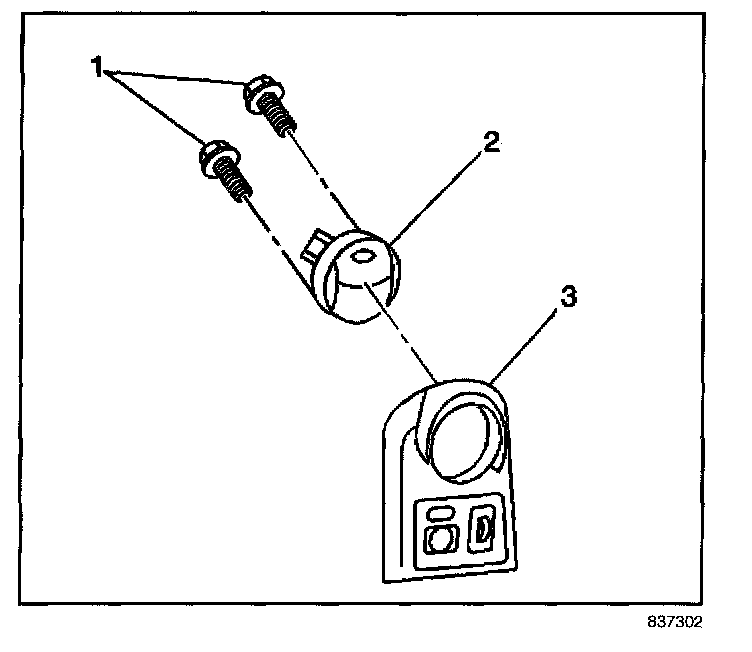

1. Install the deflector assembly (2) to the IP trim plate (3). Secure the deflector with the two screws (1).
2. Install the trim plate to the IP.
