Home >> Pontiac >> 2004 >> Vibe AWD L4-1.8L VIN 8 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> Transfer Case - BW 4482-NR4 >> Case Components

Case Components

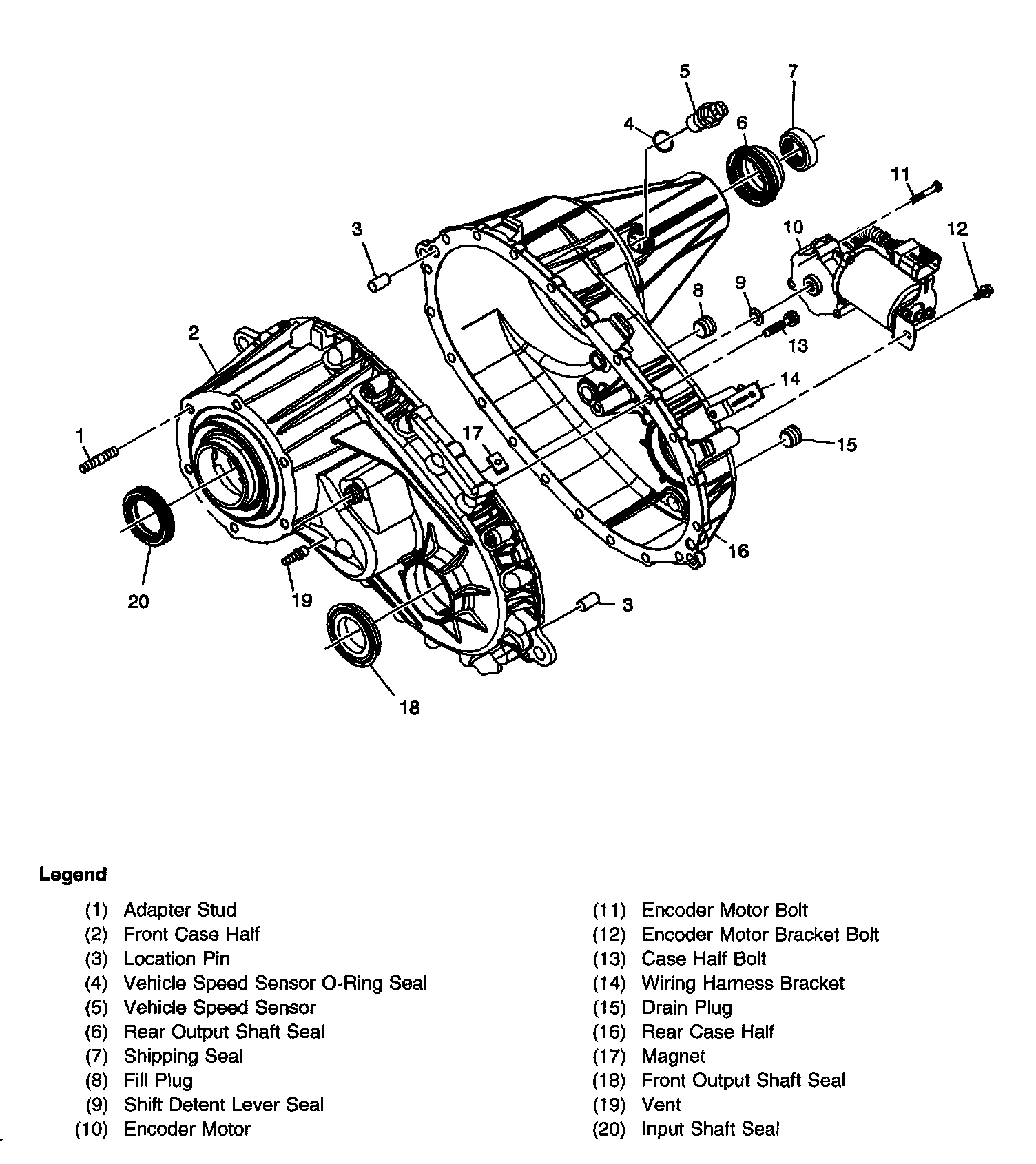

Transfer Case Disassembled View





Case Components
