Home
>>
Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
MU5 Automatic Transmission
>>

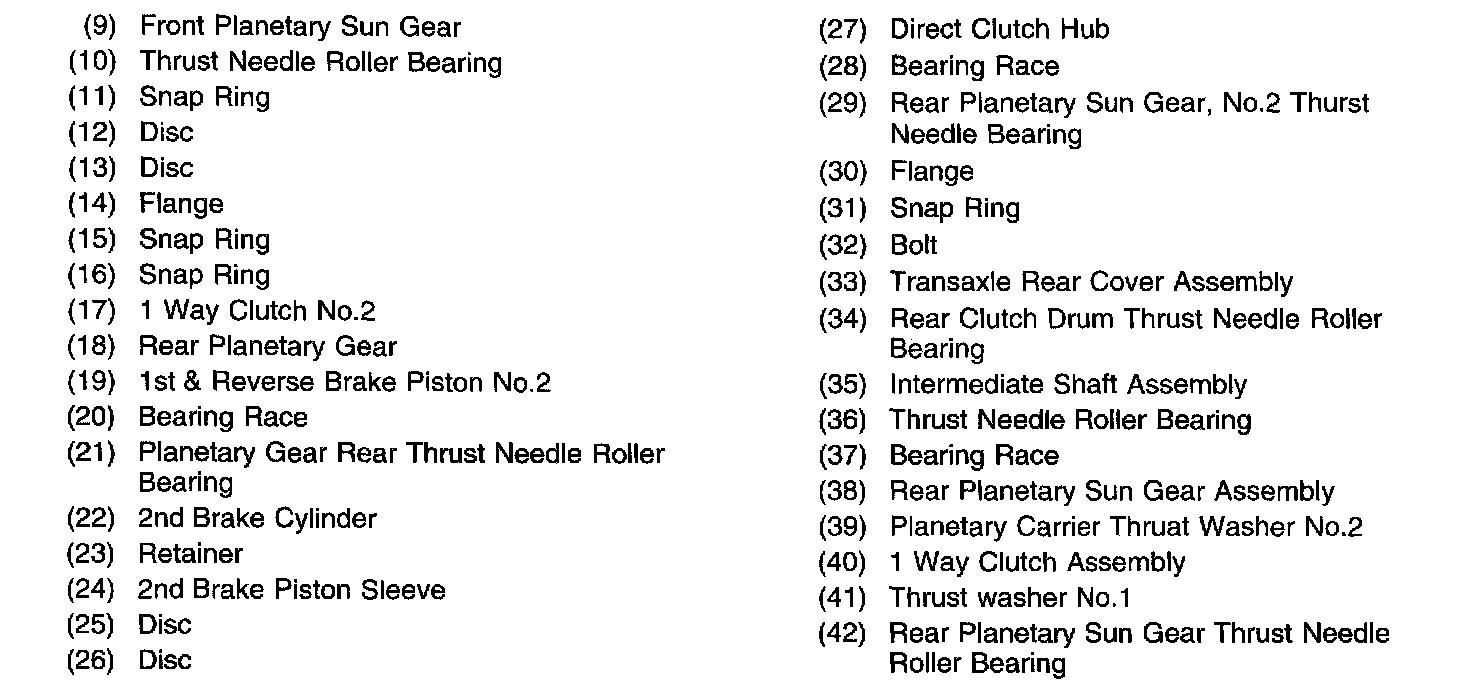

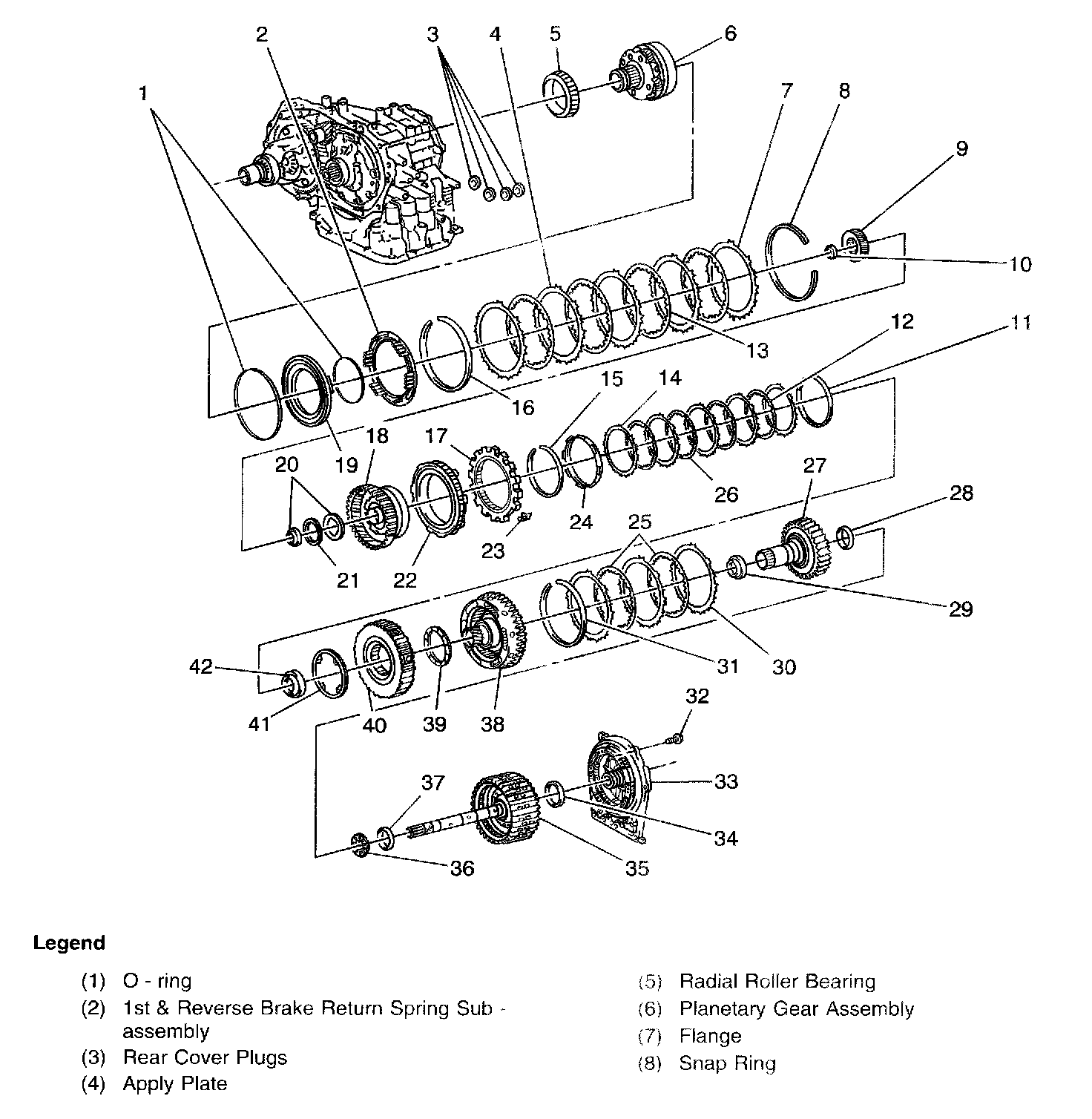

Front and Rear Planetary Gear Assemblies and Related Components
Front and Rear Planetary Gear Assemblies and Related Components
Front and Rear Planetary Gear Assemblies and Related Components
