Automatic Transmission/Transaxle
>>
MU5 Automatic Transmission
>>
Differential Assembly and Related Components

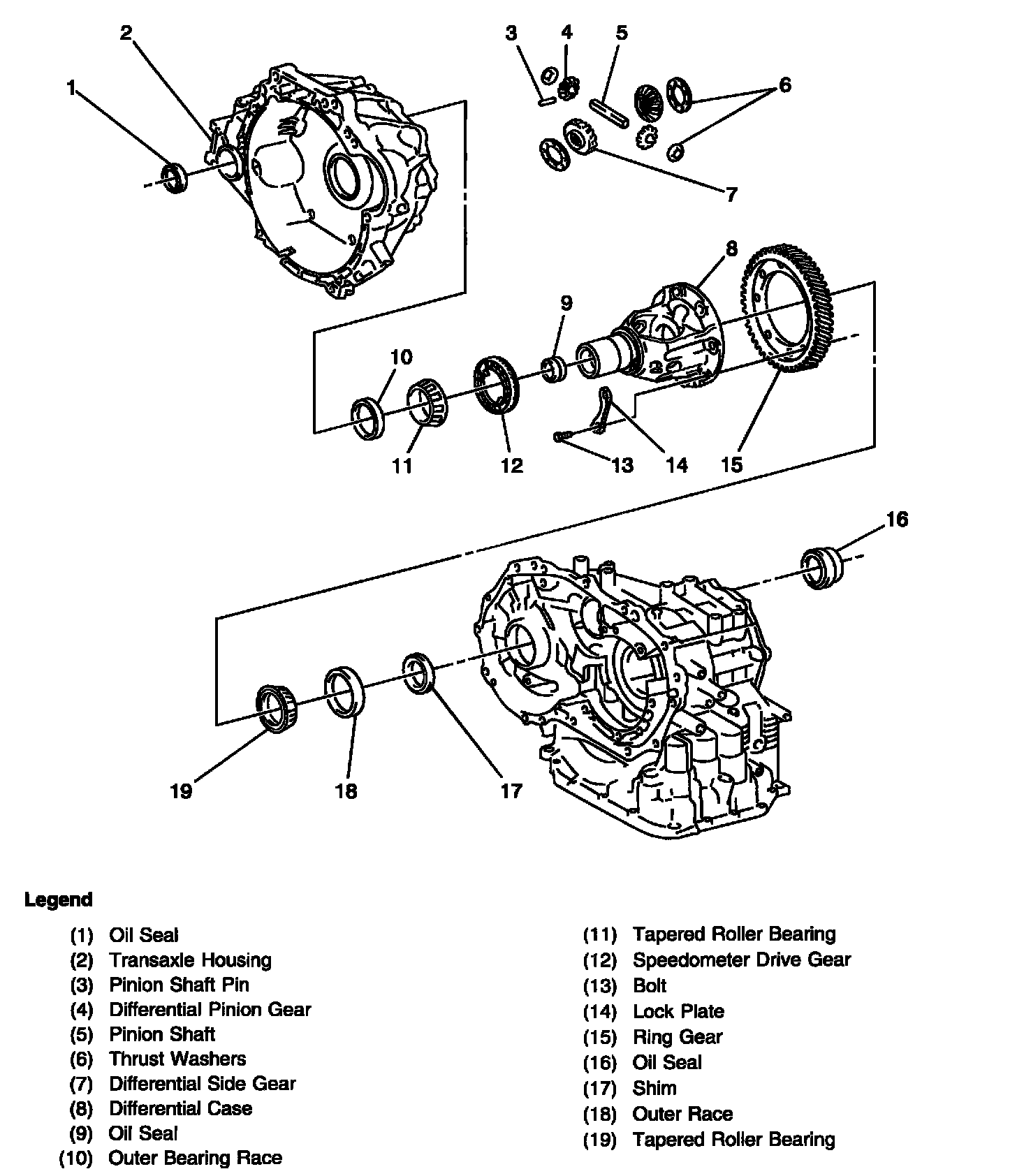

Differential Assembly and Related Components
Differential Assembly
and Related Components
