Seat Belt Buckle Switch
Seat Belt Buckle Switch

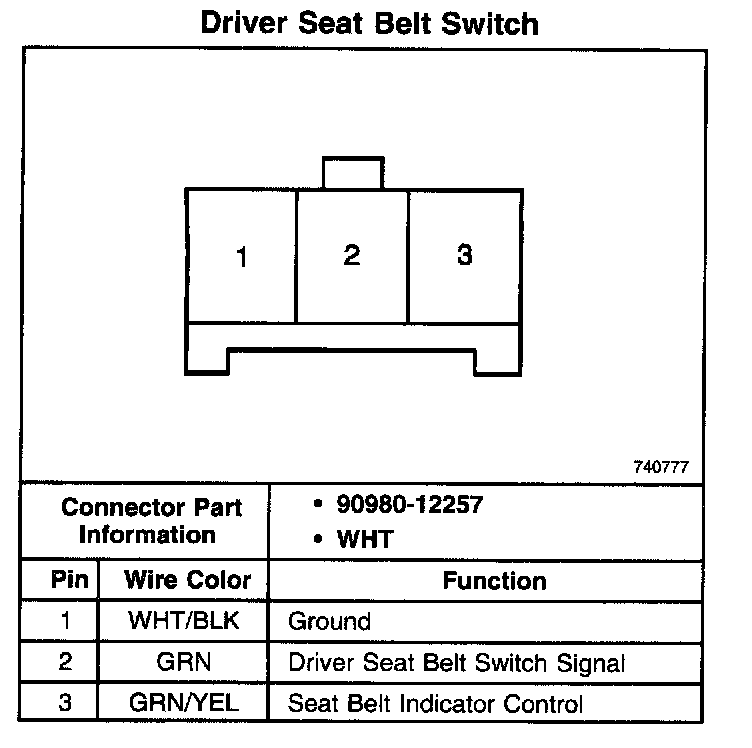

Driver Seat Belt Switch:

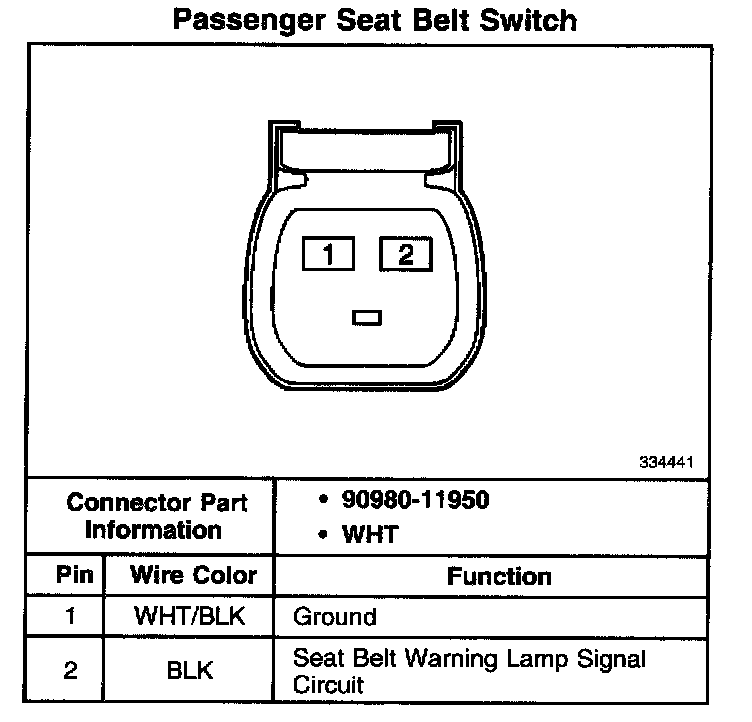

Passenger Seat Belt Switch:
