Multiple Junction Connector
>>
C206 - C224
>>

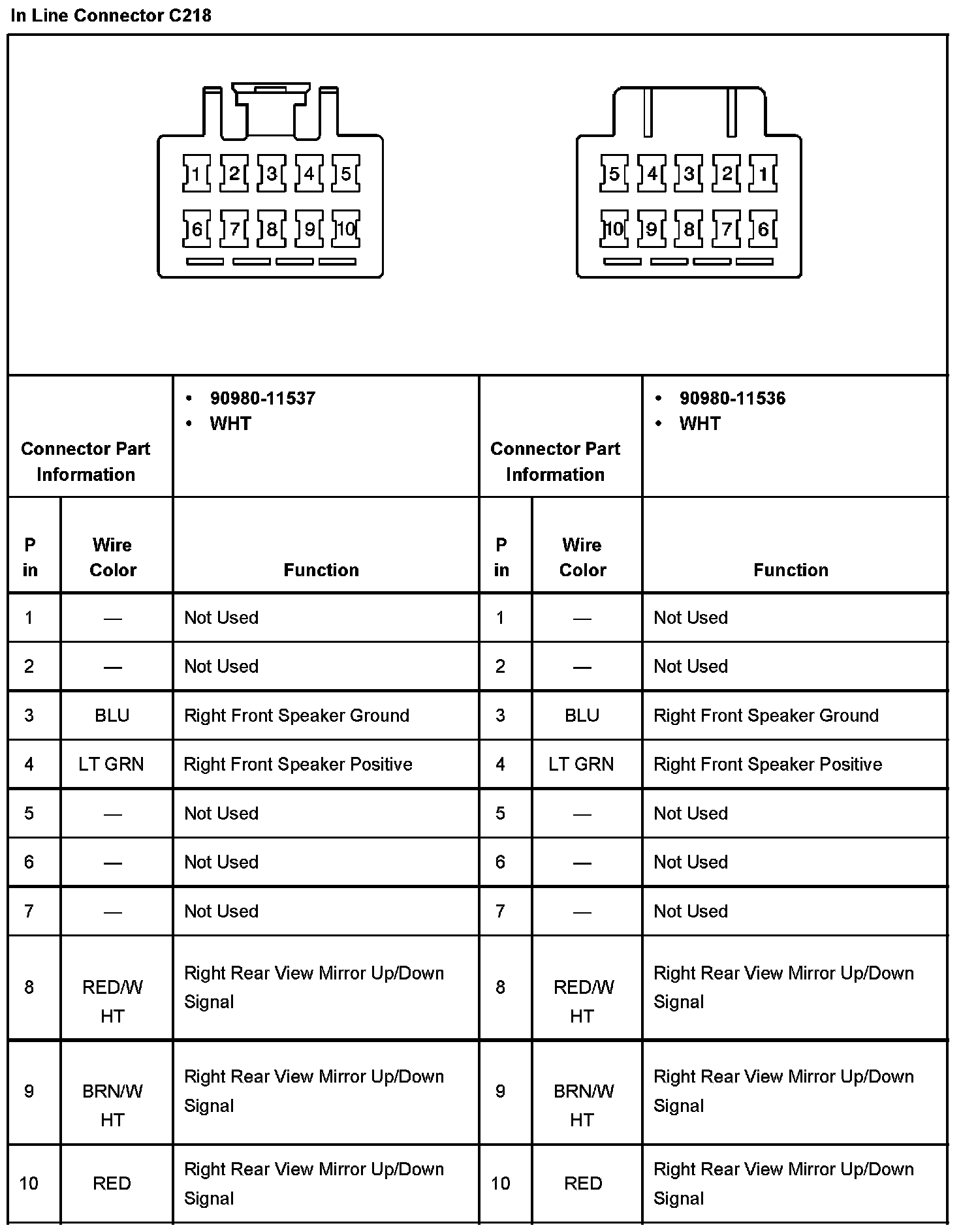

In Line Connector C218
In Line Connector C218
In Line Connector C218:
