Home
>>
Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>

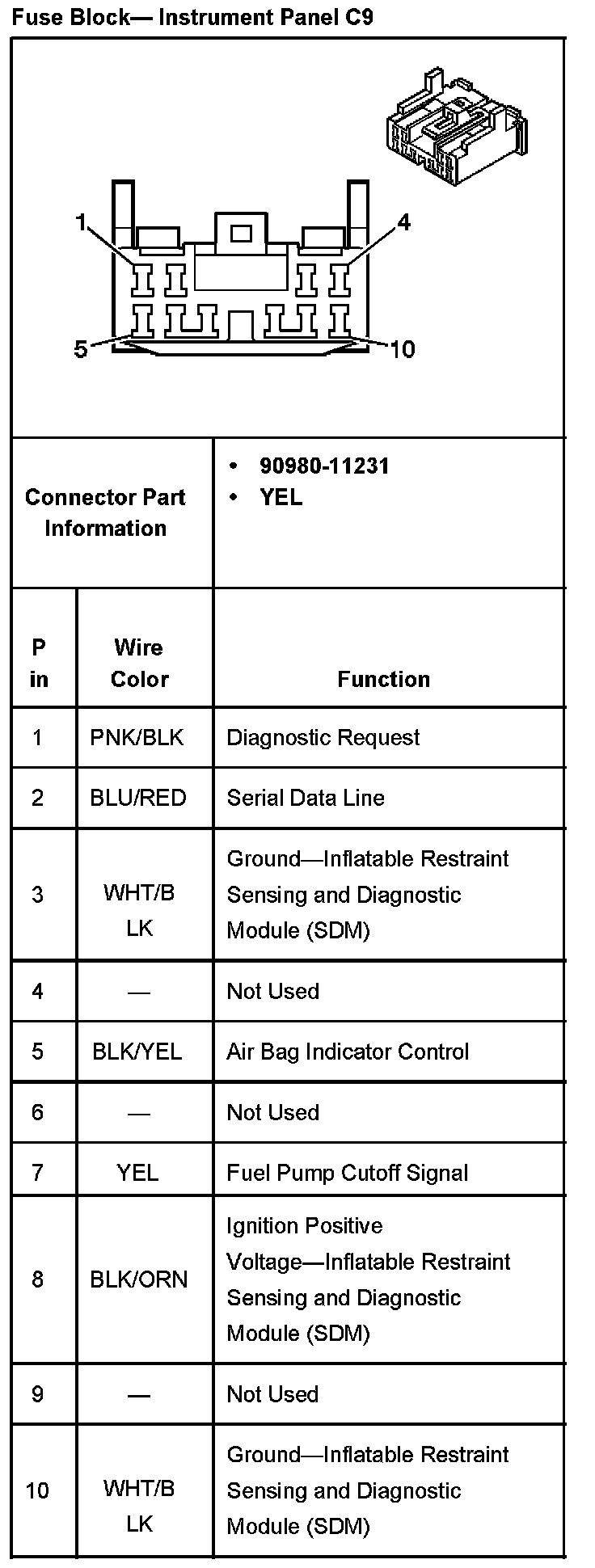

Fuse Block-Instrument Panel C9
Fuse Block-Instrument Panel C9
Fuse Block-Instrument Panel C9:
