Home
>>
Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Brake Lamp
Brake Lamp

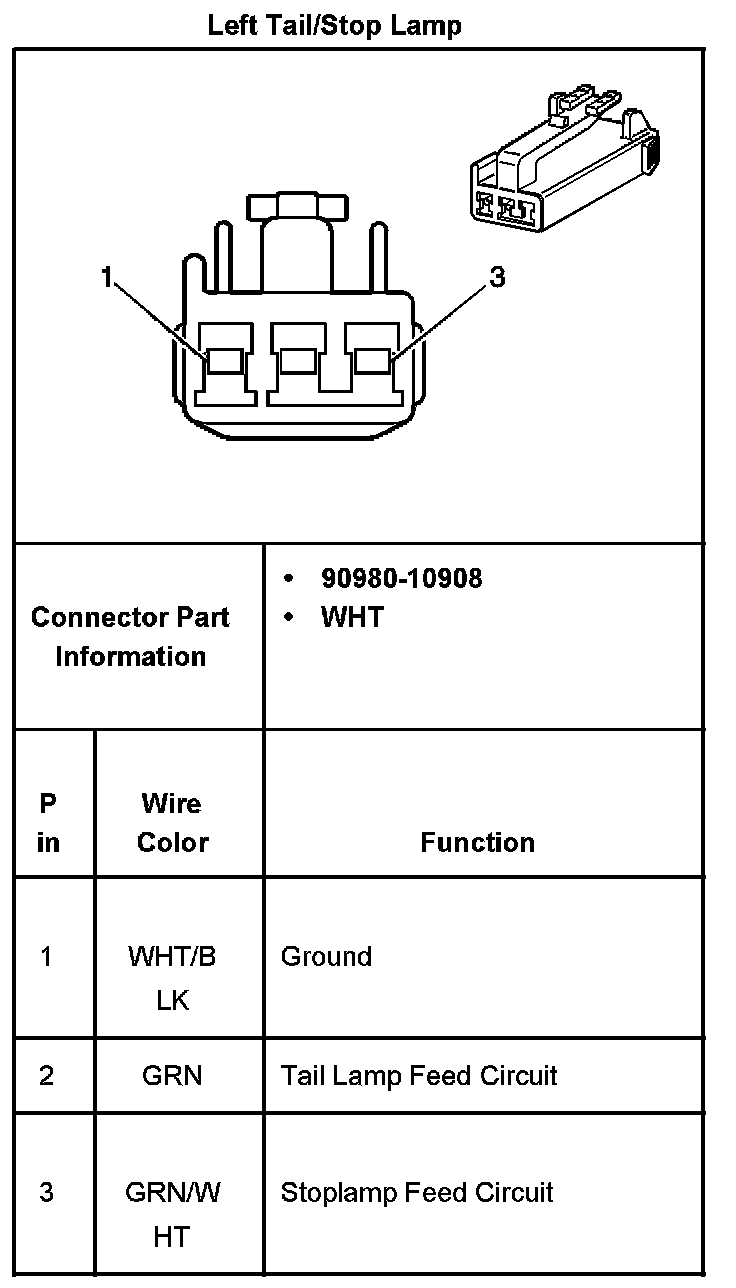

Left Tail/Stop Lamp:
Right Tail/Stop Lamp:
