Pontiac
>>
2004
>>
Vibe AWD L4-1.8L VIN 8
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Conditioning Switch
Air Conditioning Switch

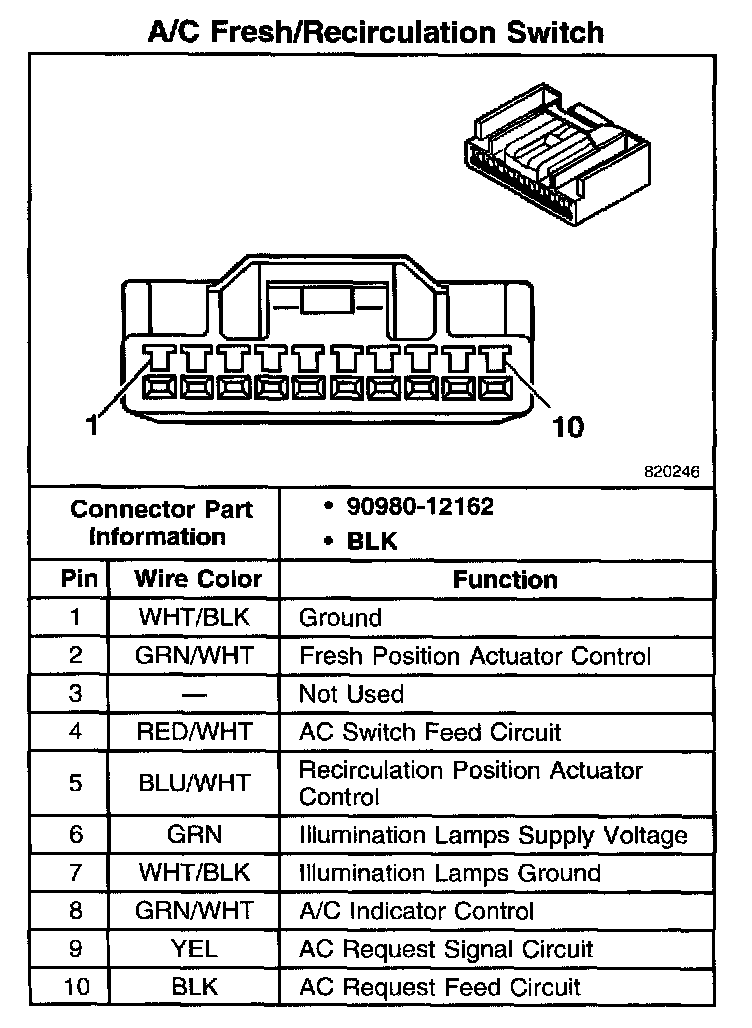

A/C Fresh/Recirculation Switch:
