Amplifier: Service and Repair

AMPLIFIER REPLACEMENT

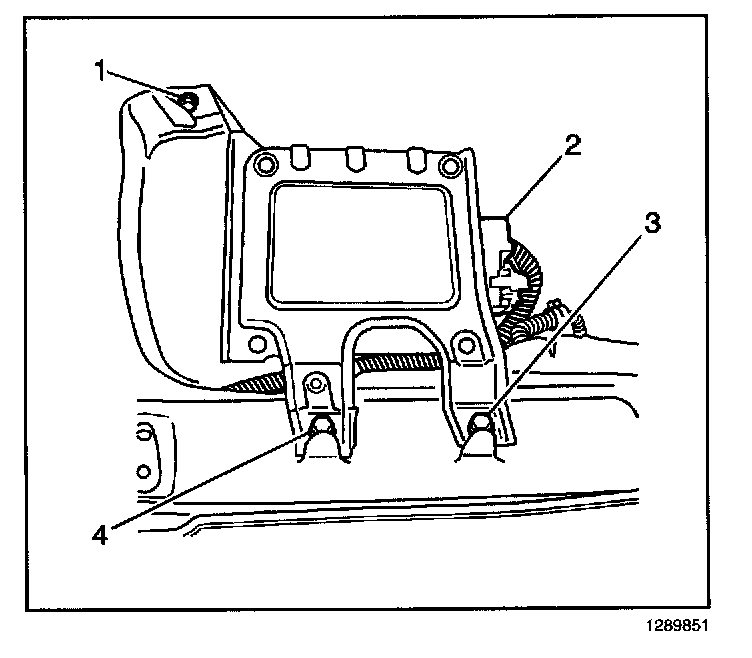

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.
2. Remove the front passenger seat.
3. Disconnect the electrical connector (2).
4. Remove the 3 bolts (1,3,4).
5. Remove the amplifier from the vehicle.

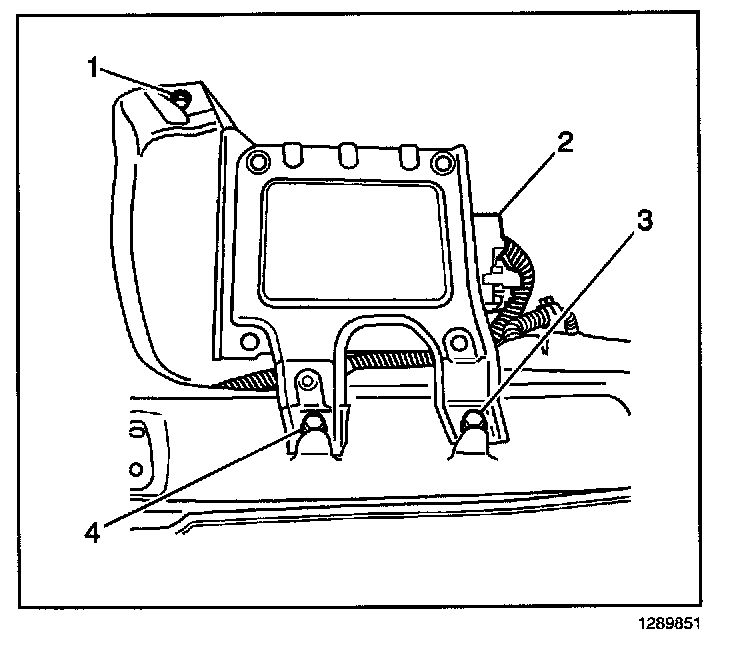

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.




1. Secure the amplifier to the vehicle with the 3 bolts (1,3,4).

Tighten
Tighten the three bolts to 10 N.m (89 lb in).

2. Connect the electrical connector (2).
3. Install the front passenger seat.
4. Connect the negative battery cable.
