Tie Rod End: Service and Repair
TIE ROD END REPLACEMENT - OUTERTOOLS REQUIRED
J 24319-B Universal Steering Linkage Puller
REMOVAL PROCEDURE
IMPORTANT: Use the J 24319-B in order to separate all the tie rod ends.
1. Remove the front tire and wheel.

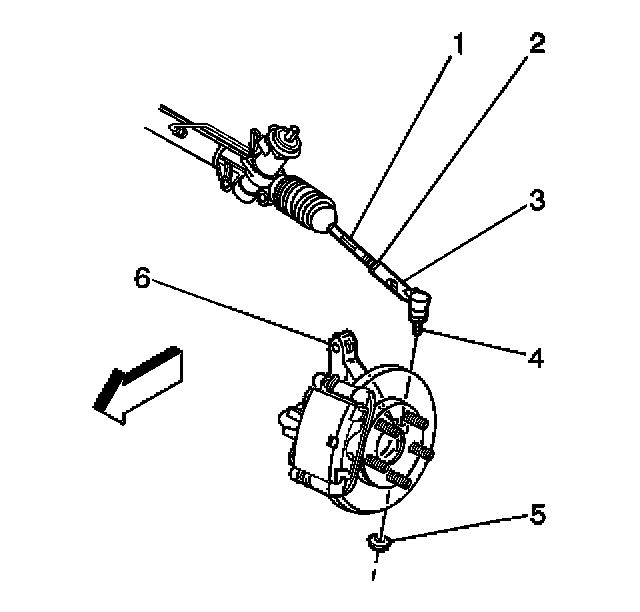

2. Remove the nut (5) from the outer tie rod ball stud (4).
3. Loosen the jam nut (2).

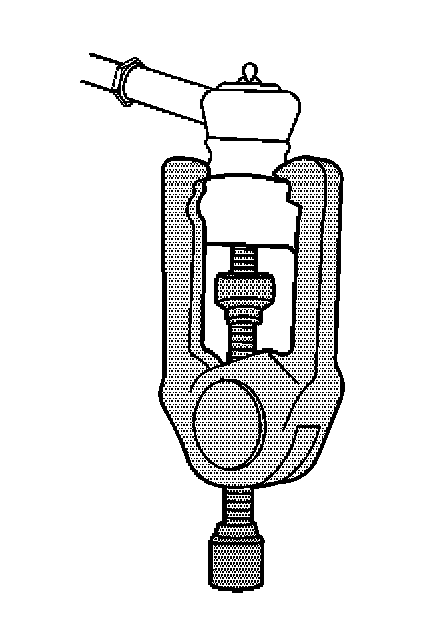

4. Use the J 24319-B in order to remove the outer tie rod ball stud from the steering knuckle.
5. Remove the tie rod end (4) from the shaft (1).
6. Inspect the inner tie rod shaft (1) for bending or damaged threads.
7. Clean the tapered surface of the steering knuckle (6).
INSTALLATION PROCEDURE

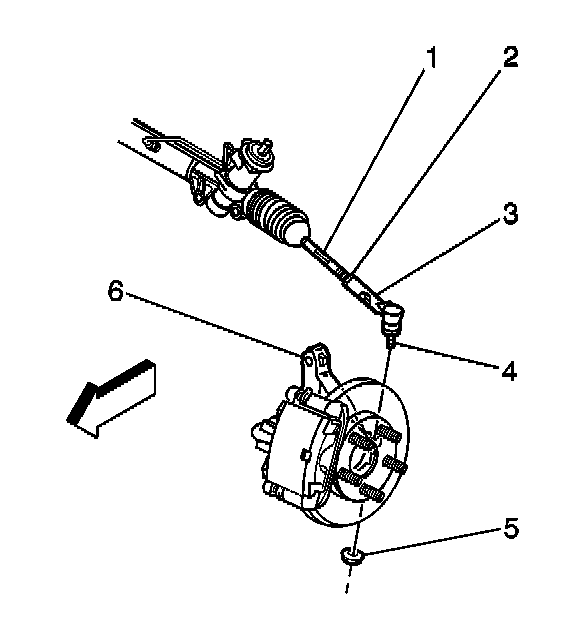

1. Install the tie rod end (3) to the inner tie rod shaft (1).
2. Install the outer tie rod ball stud (4) to the steering knuckle (6).
3. Install the new prevailing torque nut (5) to the outer tie rod ball stud (4).
NOTE: Refer to Fastener Notice in Service Precautions.
Fastener Notice
Tighten
Tighten the new prevailing torque nut to 45 N.m (33 lb ft).
4. Install the front tire and wheel.
5. Adjust the front toe. Refer to Front Toe Adjustment in Wheel Alignment.
6. Tighten the jam nut (2).
Tighten
Tighten the jam nut to 75 N.m (55 lb ft).
