Seat Belt Retractor Replacement - Rear

REMOVAL PROCEDURE




1. Remove the rear window panel trim.
2. Remove the rear seat cushion, if necessary.
3. Remove the rear seat belt retractor anchor plate bolt.
4. Remove the retractor anchor plate from the floor.

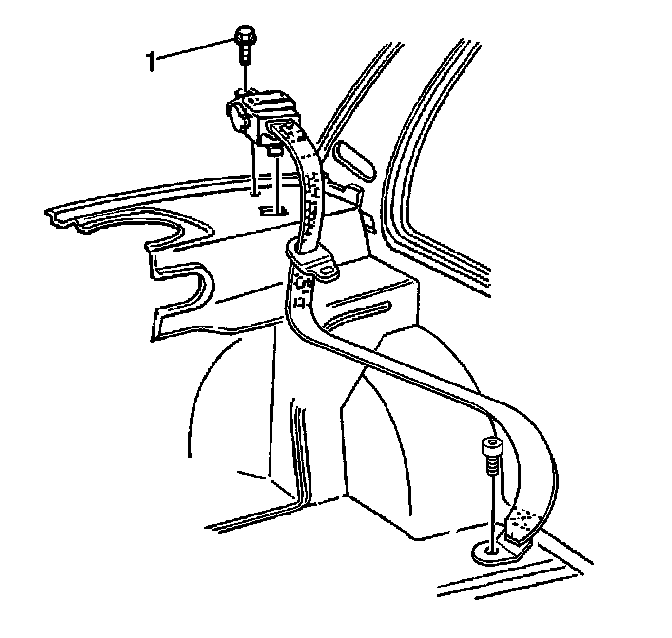

5. Remove the retractor bolt (1).
6. Remove the retractor from the rear shelf.

INSTALLATION PROCEDURE




1. Install the retractor to the rear shelf.

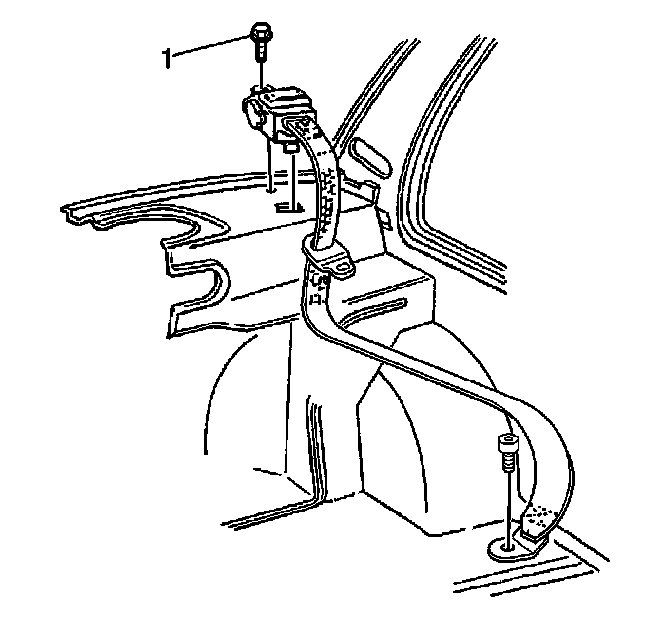

2. Install the retractor bolt (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 28 N.m (21 lb ft).

3. Install the retractor anchor plate to the floor pan.
4. Install the retractor anchor plate bolt.

Tighten
Tighten the bolt to 48 N.m (35 lb ft).

5. Install the rear seat cushion, if necessary.
6. Install the rear window panel trim.
7. Check the rear seat retractor belt for proper operation.
