Seat Belt Retractor Replacement - Center Rear

REMOVAL PROCEDURE

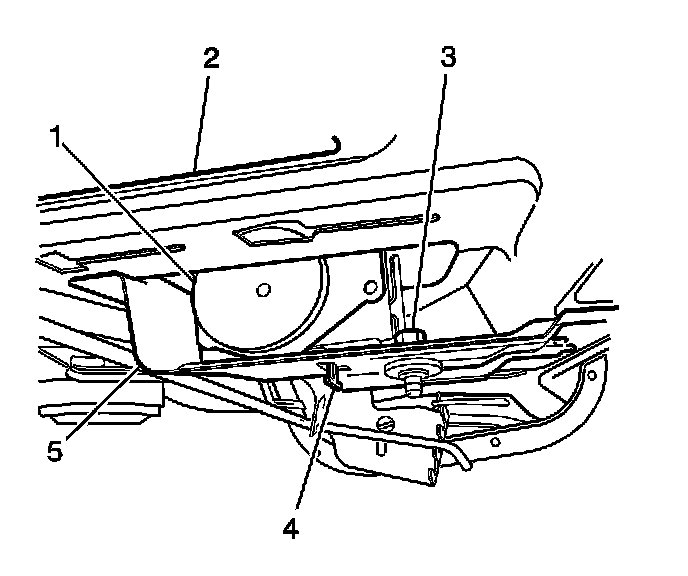

1. Remove the rear window panel trim.
2. Open the rear compartment.
3. Remove the center rear seat belt retractor bolt (3) from the rear compartment.
4. Slide the retractor (1) forward to disengage the locking tab (4) from the retractor bracket (5).
5. From inside the vehicle remove the retractor (1) from the rear shelf (2).

INSTALLATION PROCEDURE

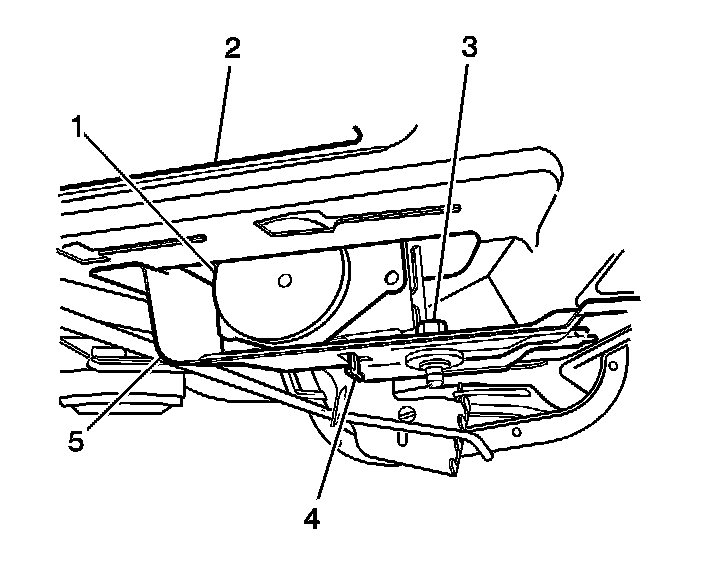

1. From inside the vehicle install the rear seat belt retractor assembly (1) to the rear shelf (2).
2. From the rear compartment slide the retractor rearward to engage the locking tab (4) into the retractor bracket (5).
3. Install the rear seat belt retractor bolt (3).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 28 N.m (21 lb ft).

4. Install the rear window panel trim.
5. Check the rear seat retractor belt for proper operation.
