Seat Belt Buckle Replacement - Right Front

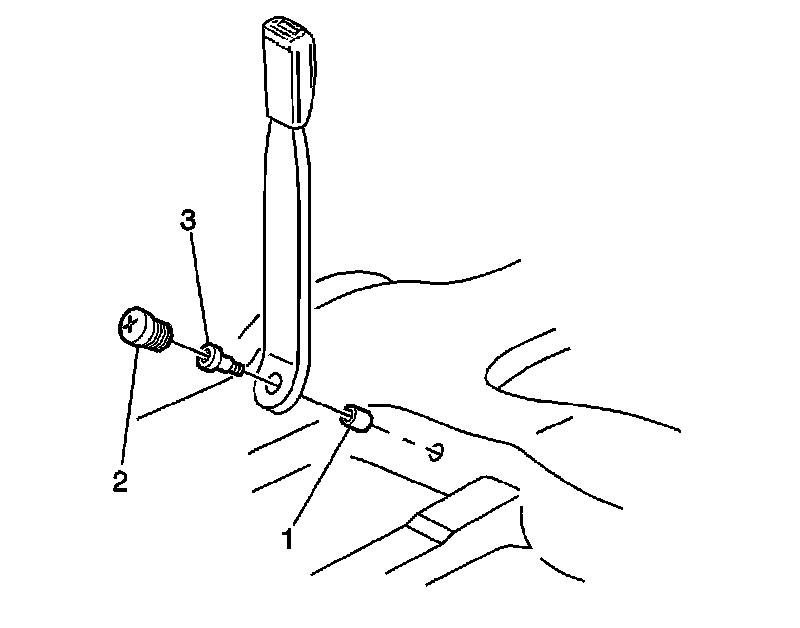

REMOVAL PROCEDURE




1. Position the right front bucket seat to the most forward position.
2. Remove the seat belt buckle bolt plug (2).
3. Remove the seat belt buckle bolt (3).
4. Remove the seat belt buckle from the floor pan tunnel.

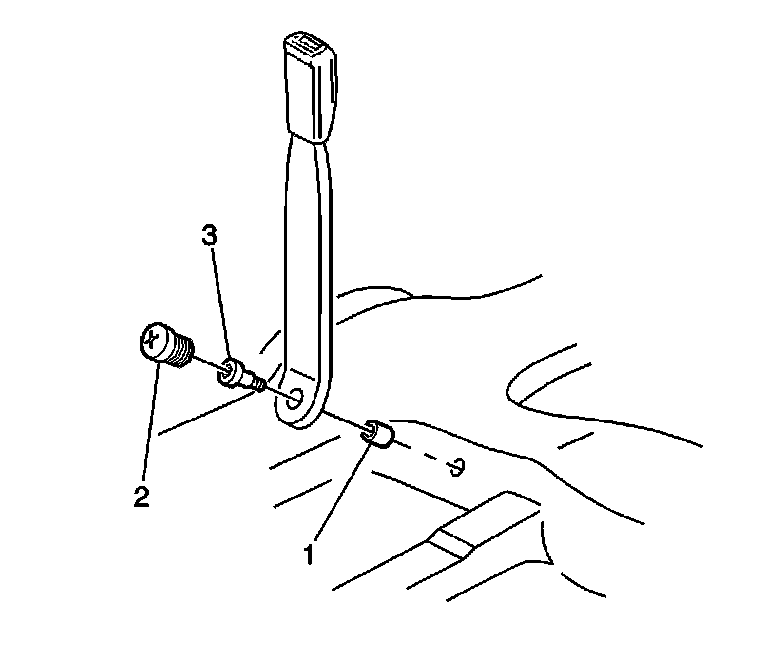

INSTALLATION PROCEDURE




1. Position the seat belt buckle to the floor pan tunnel
2. Install the seat belt buckle bolt (3).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 48 N.m (35 lb ft).

3. Install the seat belt buckle bolt plug.
4. Reposition the right front seat to the original position.
