Seat Belt Buckle Replacement - Left Front

REMOVAL PROCEDURE
1. Disable the SIR system, if equipped with Side Impact Air Bag (SIAB). Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 in Restraints.

CAUTION: When performing service on or near the SIR components or the SIR wiring, the SIR system must be disabled. Refer to SIR Disabling and Enabling Zones. Failure to observe the correct procedure could cause deployment of the SIR components, personal injury, or unnecessary SIR system repairs.




2. Remove the front bucket seat.
3. Disconnect the seat belt buckle electrical connector.

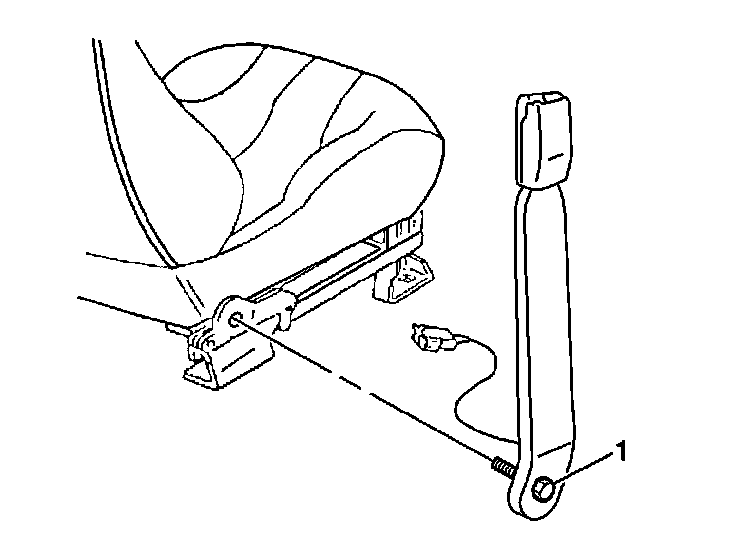

4. Remove the seat belt buckle bolt (1).
5. Remove the seat belt buckle from the seat.

INSTALLATION PROCEDURE




1. Position the seat belt buckle to the seat.

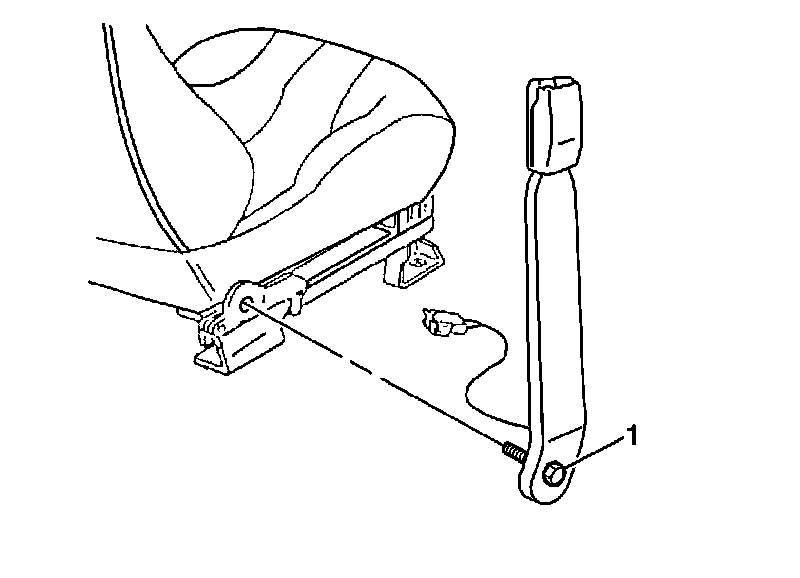

2. Install the seat belt buckle bolt (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 34 N.m (25 lb ft).

3. Connect the seat belt buckle electrical connector.
4. Install the front bucket seat.
5. Enable the SIR system, if equipped with SIAB. Refer to SIR Disabling and Enabling Zone 7 or SIR Disabling and Enabling Zone 9 in Restraints.
