Home >> Pontiac >> 2004 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Diagrams

Seat Belt Systems: Diagrams

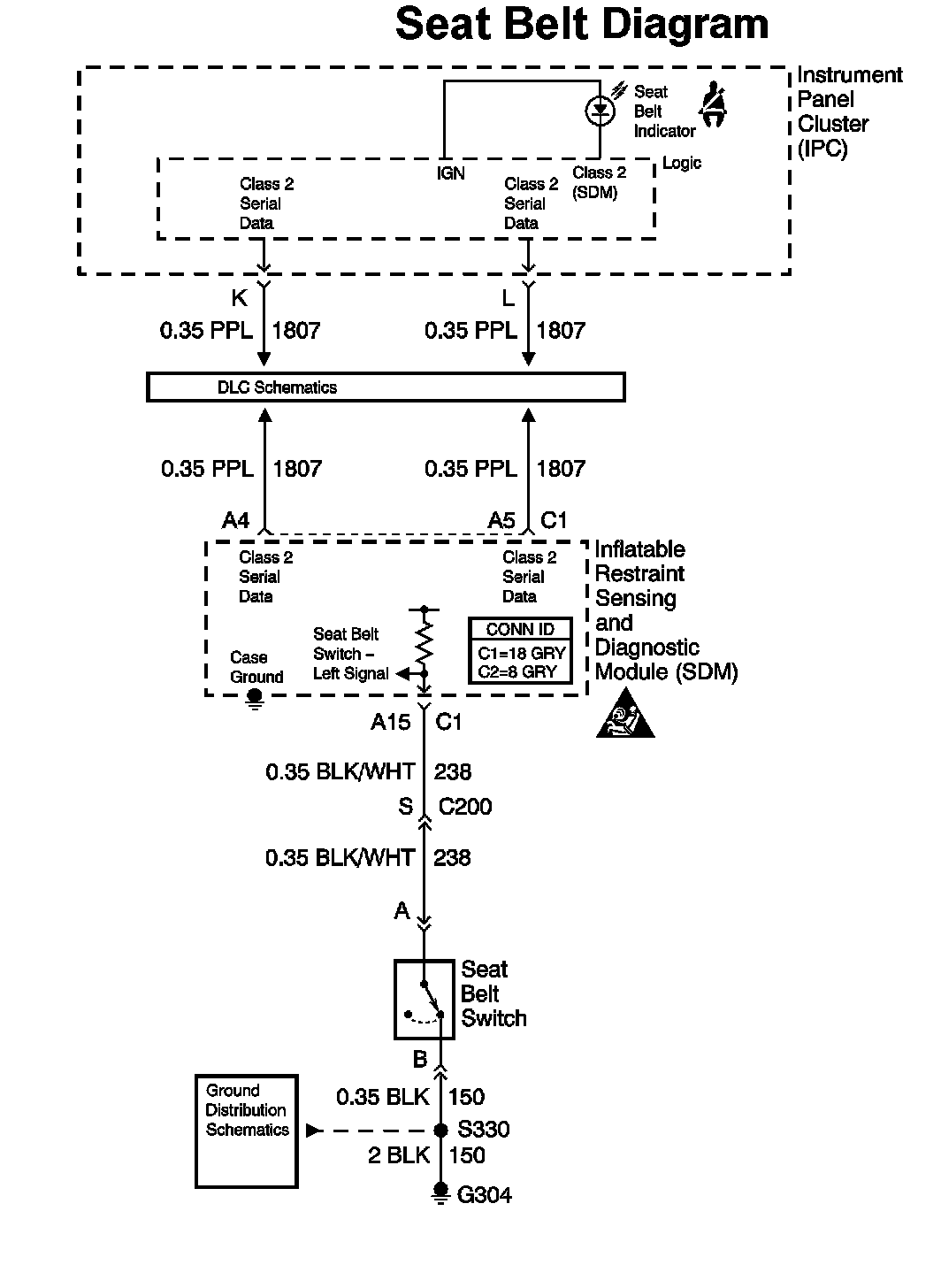

Seat Belt Diagram:
