Home >> Pontiac >> 2004 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Canister Purge Solenoid >> Diagrams

Canister Purge Solenoid: Diagrams

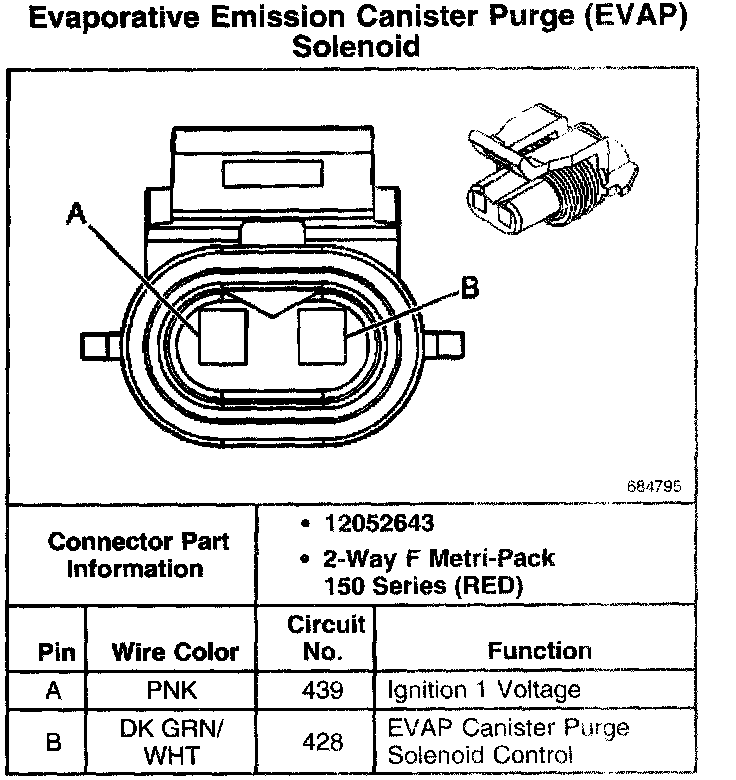

Evaporative Emission Canister Purge (EVAP) Solenoid:
