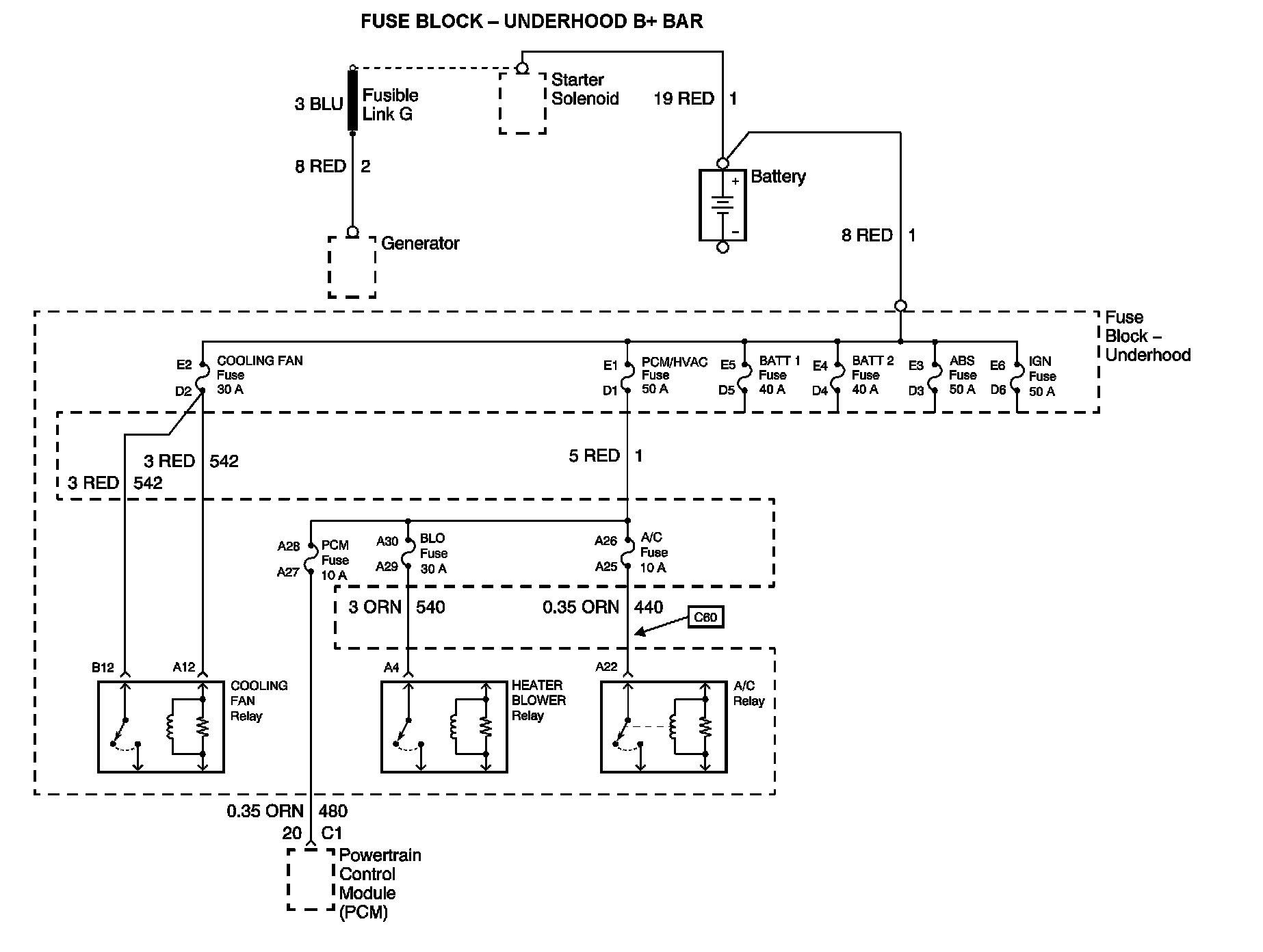

Power Distribution Diagram 1

Power Distribution Diagram 1:






Next Diagram Power Distribution Diagram 2
