Home >> Pontiac >> 2004 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> HVAC Control Assembly C2

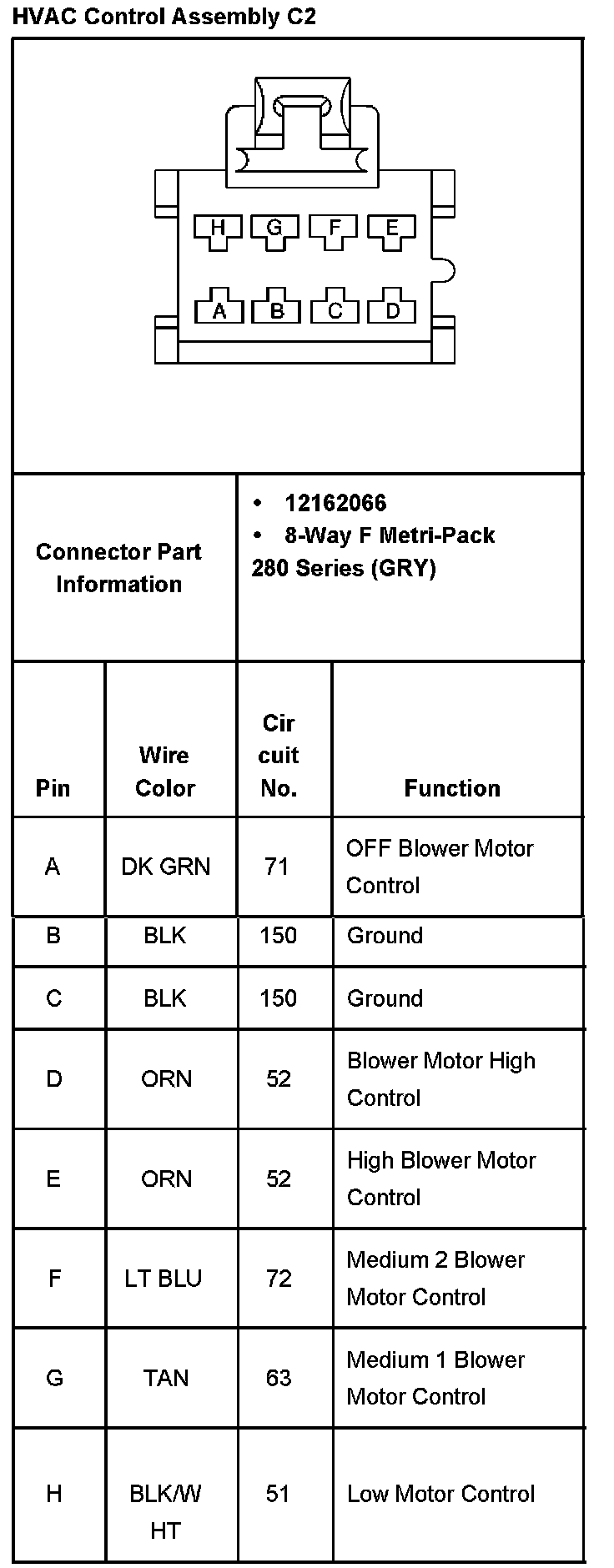

HVAC Control Assembly C2

HVAC Control Assembly C2:
