Air Door Actuator / Motor: Service and Repair
RECIRCULATION ACTUATOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the HVAC module assembly.
2. Disconnect the wire harness from the recirculation actuator.

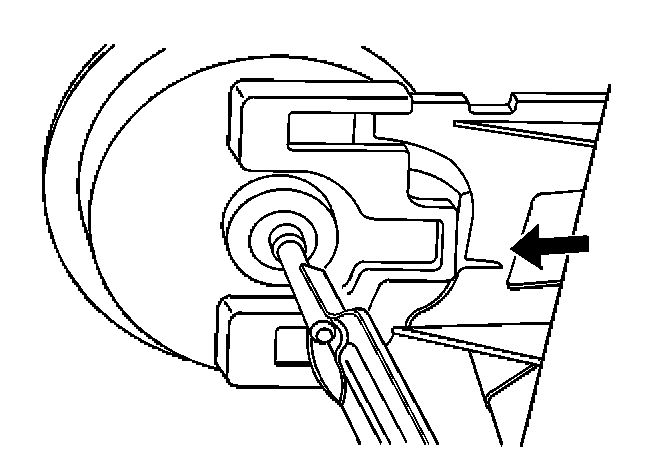

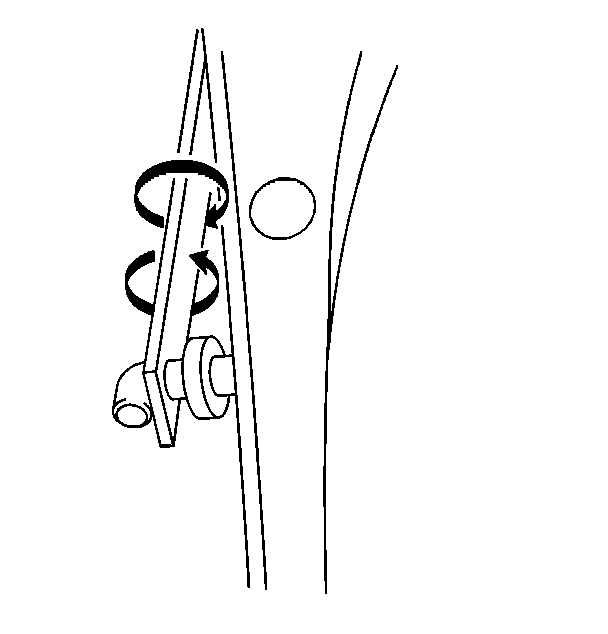

3. Remove the 2 screws holding the recirculation actuator housing to the HVAC module assembly.
4. Remove the recirculation actuator from the HVAC module assembly.
INSTALLATION PROCEDURE
1. Slide the recirculation actuator on to the module.
2. Install the 2 screws holding the recirculation actuator housing to the HVAC module assembly.
3. Connect the wiring harness to the recirculation actuator.
4. Install the HVAC module assembly.
