Engine Mount Strut Replacement

Engine Mount Strut Replacement

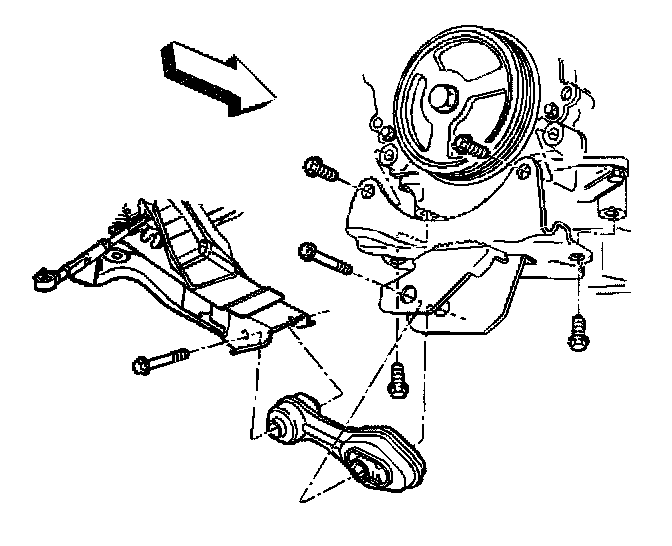

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the right engine splash shield.
3. Remove the engine mount strut bolts.
4. Remove the engine mount strut.

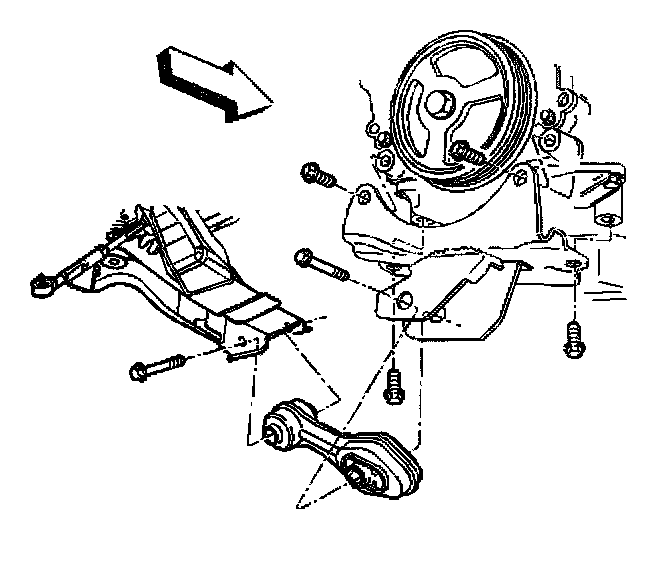

Installation Procedure





1. Install the engine mount strut.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the engine mount strut bolts.
^ Tighten the engine mount strut bolts to 100 Nm (74 ft. lbs.) + 90 degrees.
3. Install the right engine splash shield.
4. Lower the vehicle.
