Engine Mount Replacement
Engine Mount ReplacementRemoval Procedure
1. Remove the cruise control module mounting nuts.

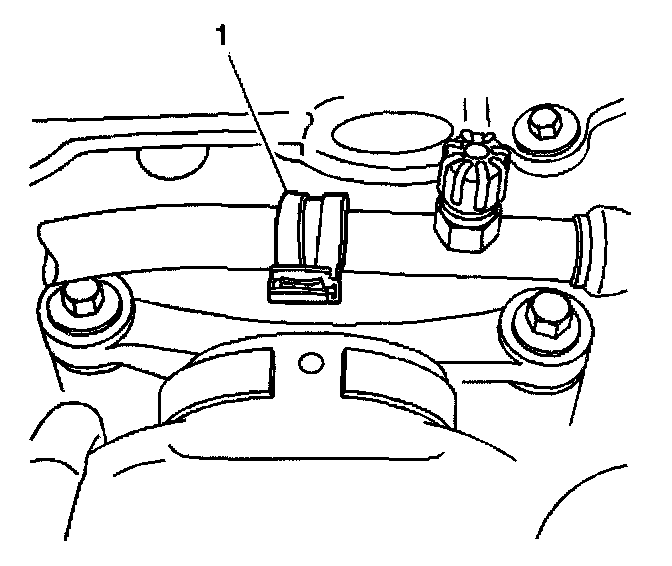

2. Remove the A/C low pressure line retaining bracket (1) nut.

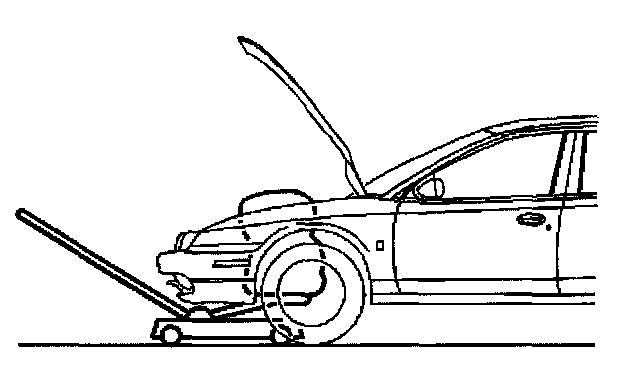

3. Using a block of wood between the floor jack and the oil pan, support the engine.

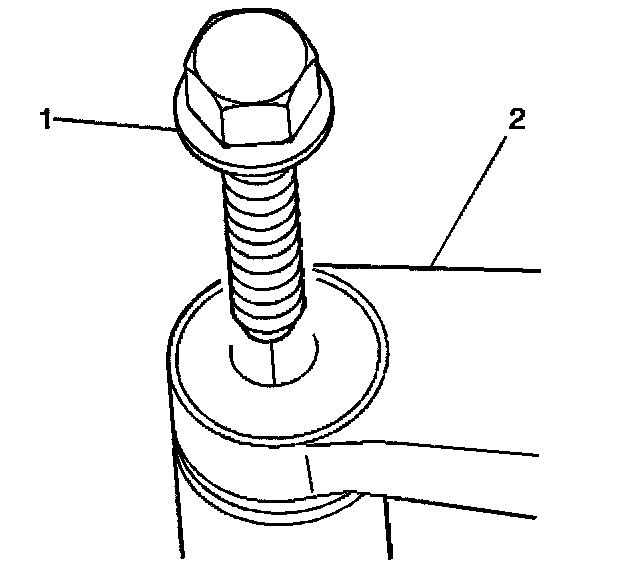

4. Remove the engine mount (2) to bracket bolts (1).

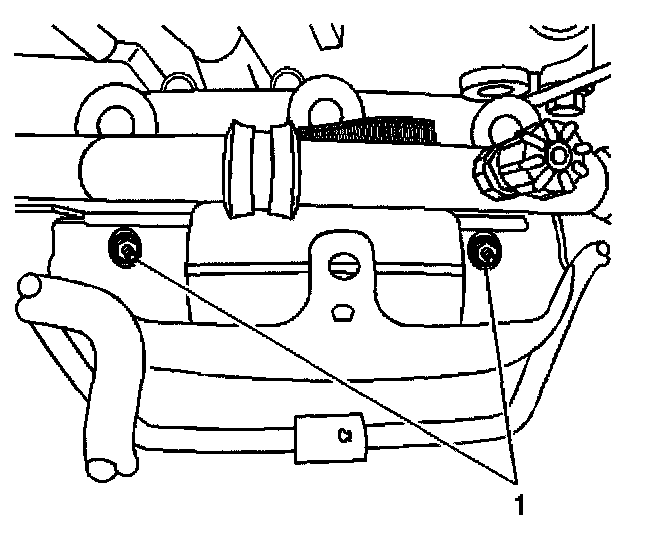

5. Remove the engine mount to body nuts (1).
6. Remove the engine mount.
Installation Procedure
1. Install the engine mount to the vehicle.

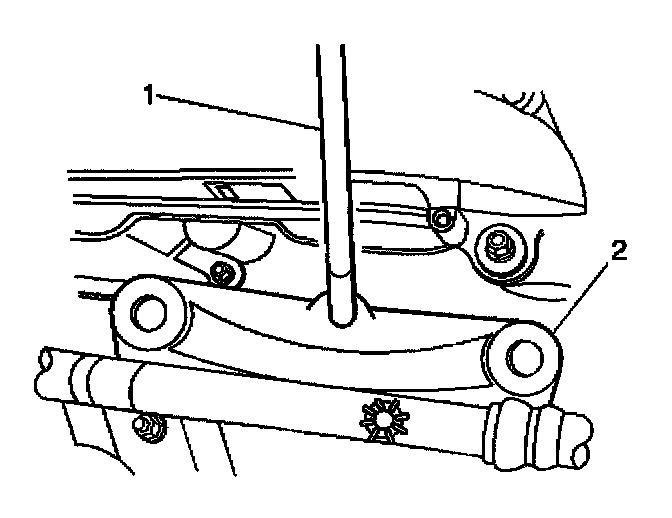

2. Align the engine mount (2) to the mount bracket using a dowel (1).

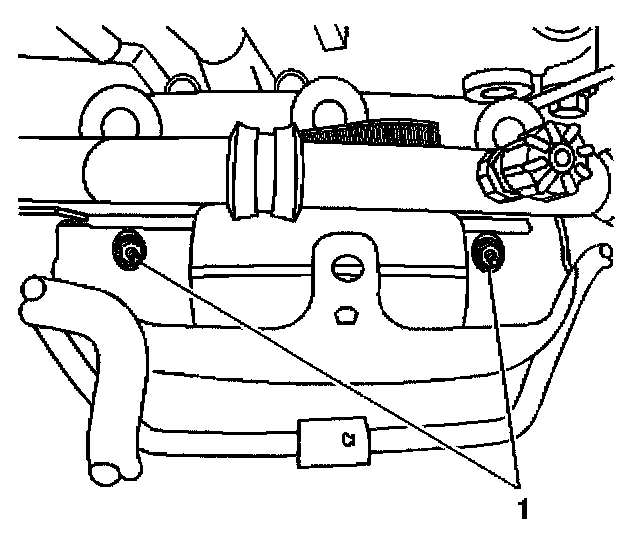

3. Hand tighten the engine mount to body nuts (1).

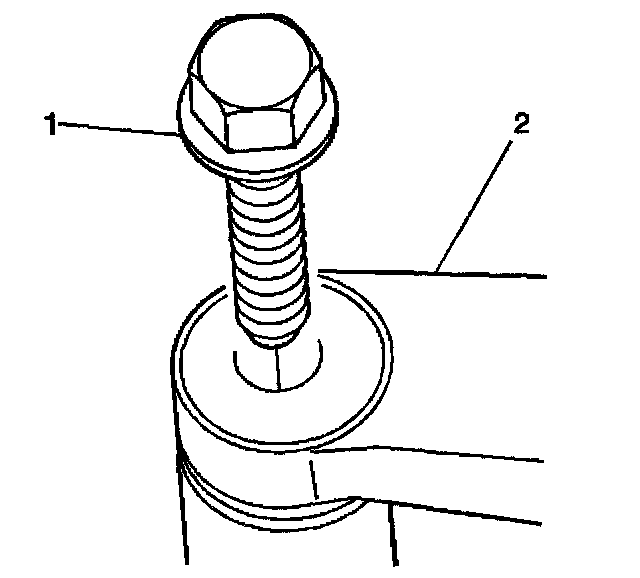

4. Install the engine mount (2) to bracket bolts (1).
Notice: Refer to Fastener Notice in Service Precautions.
^ Tighten the engine mount to body nuts and the engine mount to bracket bolts to 55 Nm (41 ft. lbs.).
^ Tighten the engine mount bolts to 110 Nm (81 ft. lbs.).

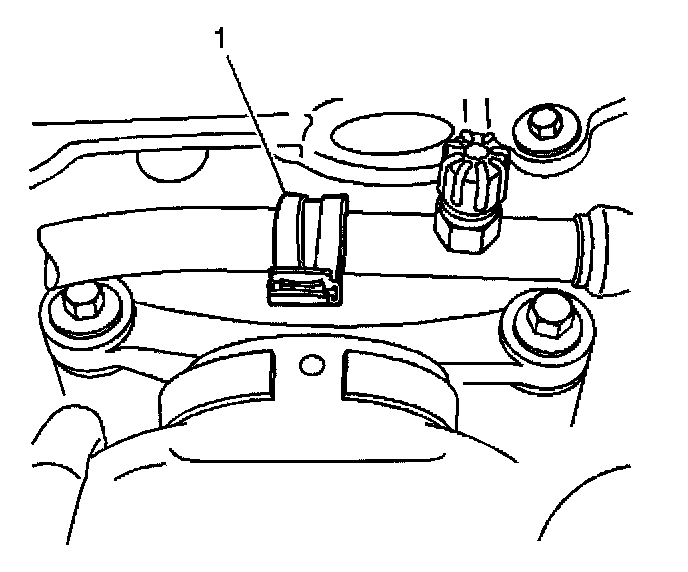

5. Install the A/C low pressure line retaining bracket (1) nut.
^ Tighten the nut to 10 Nm (89 inch lbs.).
6. Install the cruise control module mounting nuts.
^ Tighten the nuts to 10 Nm (89 inch lbs.).
7. Remove the floor jack.
