Pontiac
>>
2004
>>
Sunfire L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Hydraulic System, Brakes
>>

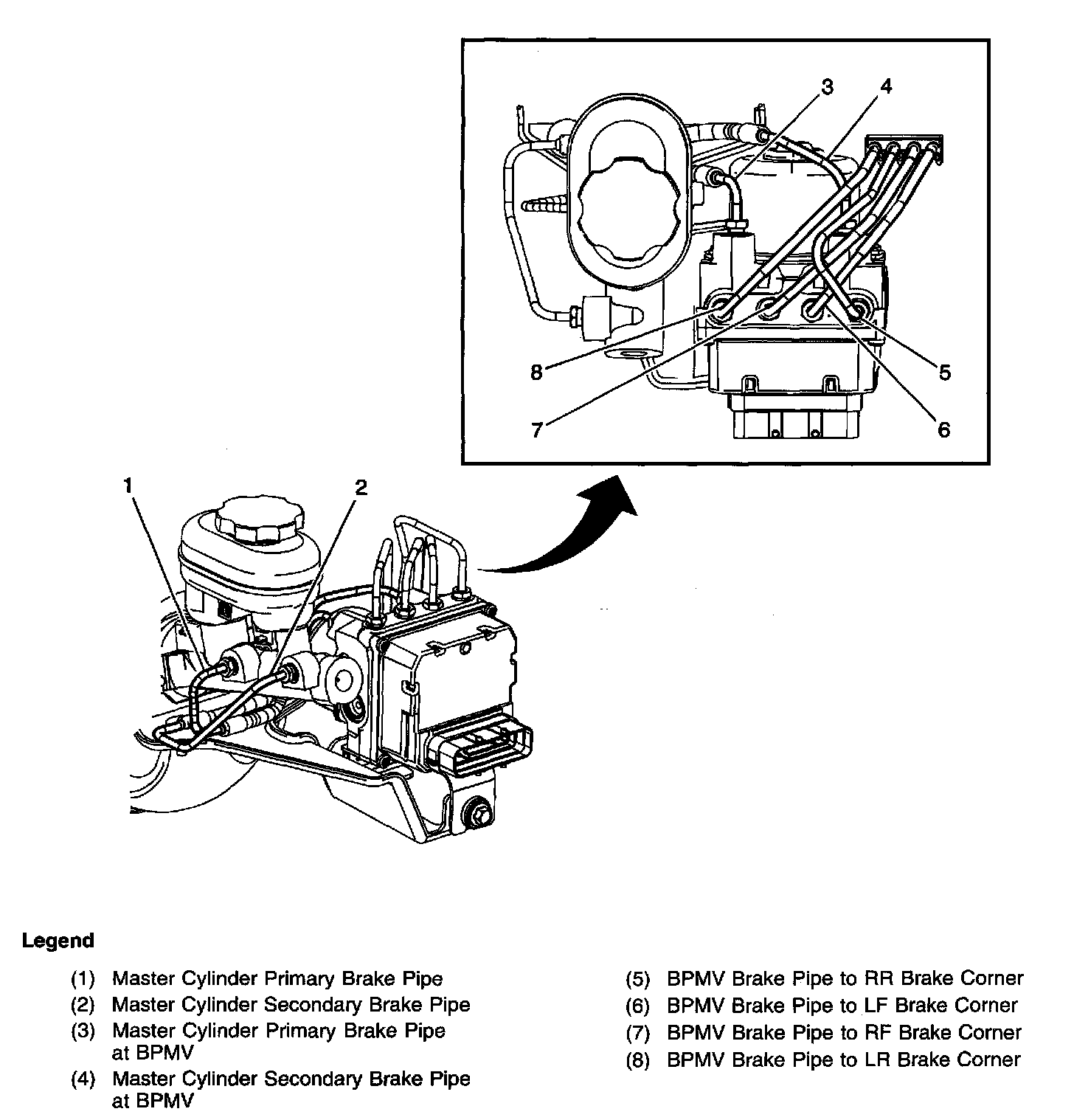

Hydraulic Brake Pipe Routing - Master Cylinder to ABS
Hydraulic Brake Pipe Routing - Master Cylinder to ABS
