Axle Shaft Assembly
Axle Shaft Assembly

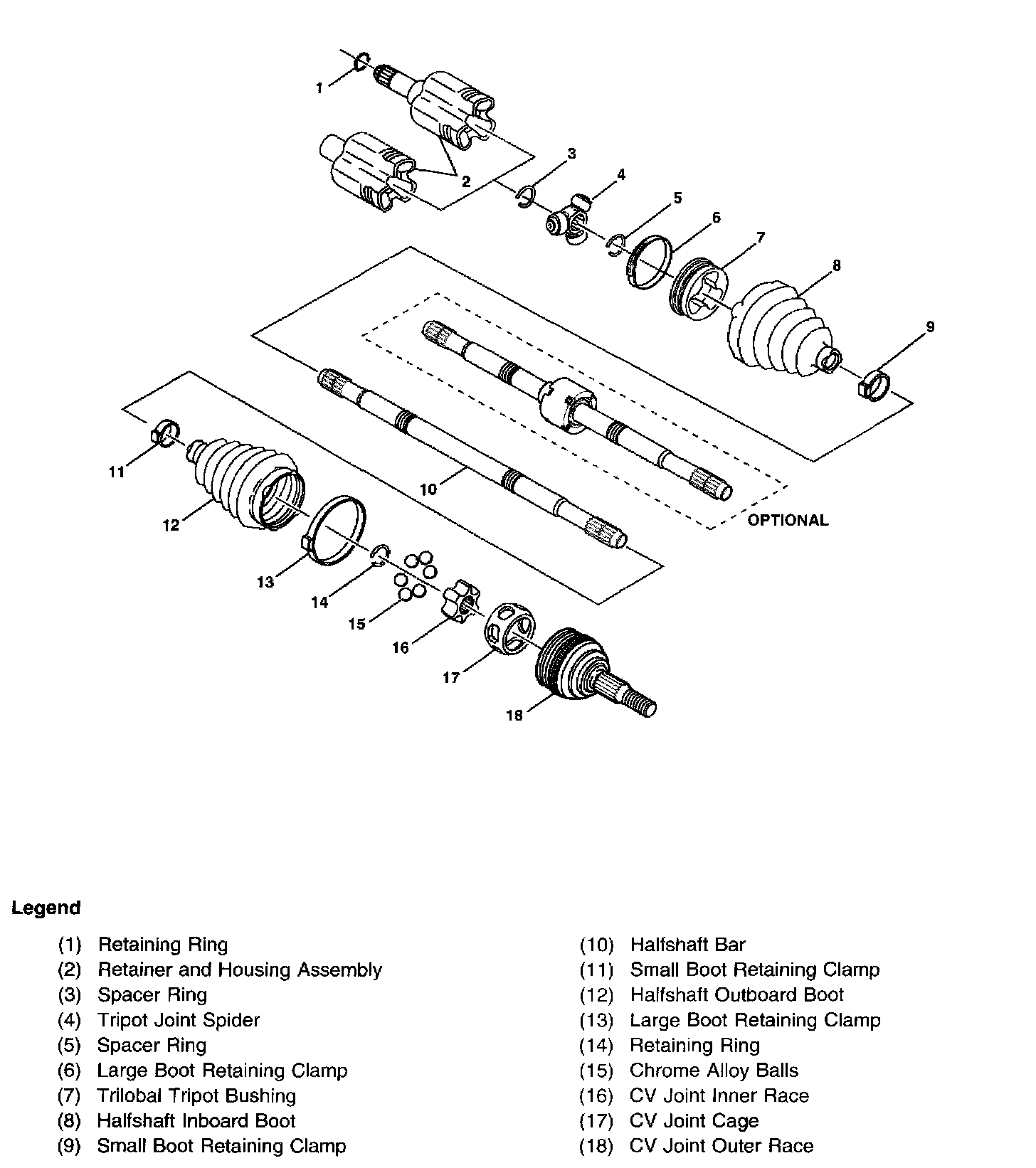

Wheel Drive Shafts Disassembled Views (Halfshaft Assembly)
Trilobal Design-Halfshaft
