Pontiac
>>
2004
>>
Sunfire L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

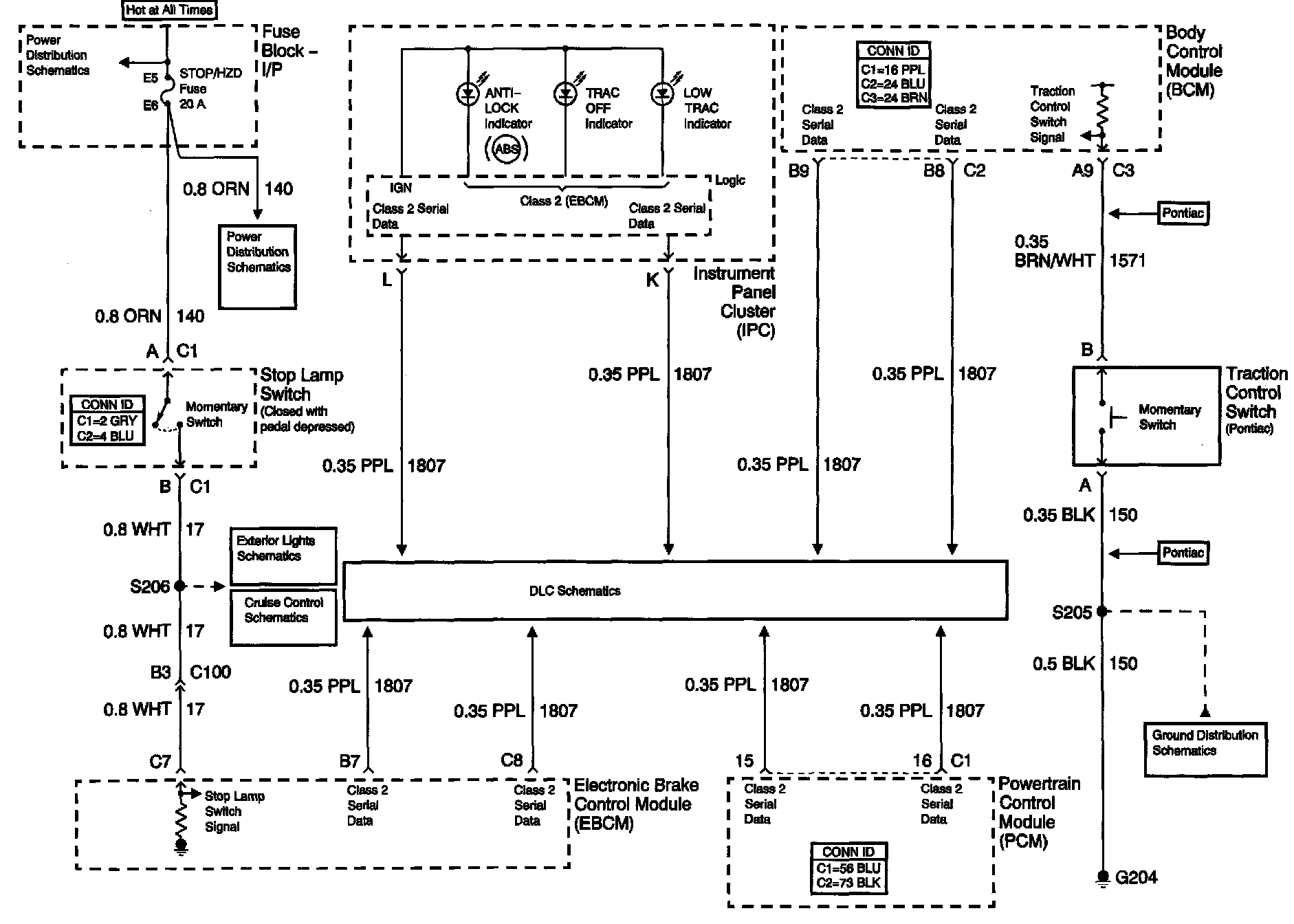

ABS Schematics (Indicators and Switches)
ABS Schematics (Indicators and Switches)
ABS Diagrams (Indicators and Switches):
