Control Assembly, HVAC
>>
HVAC Control Assembly C3
HVAC Control Assembly C3

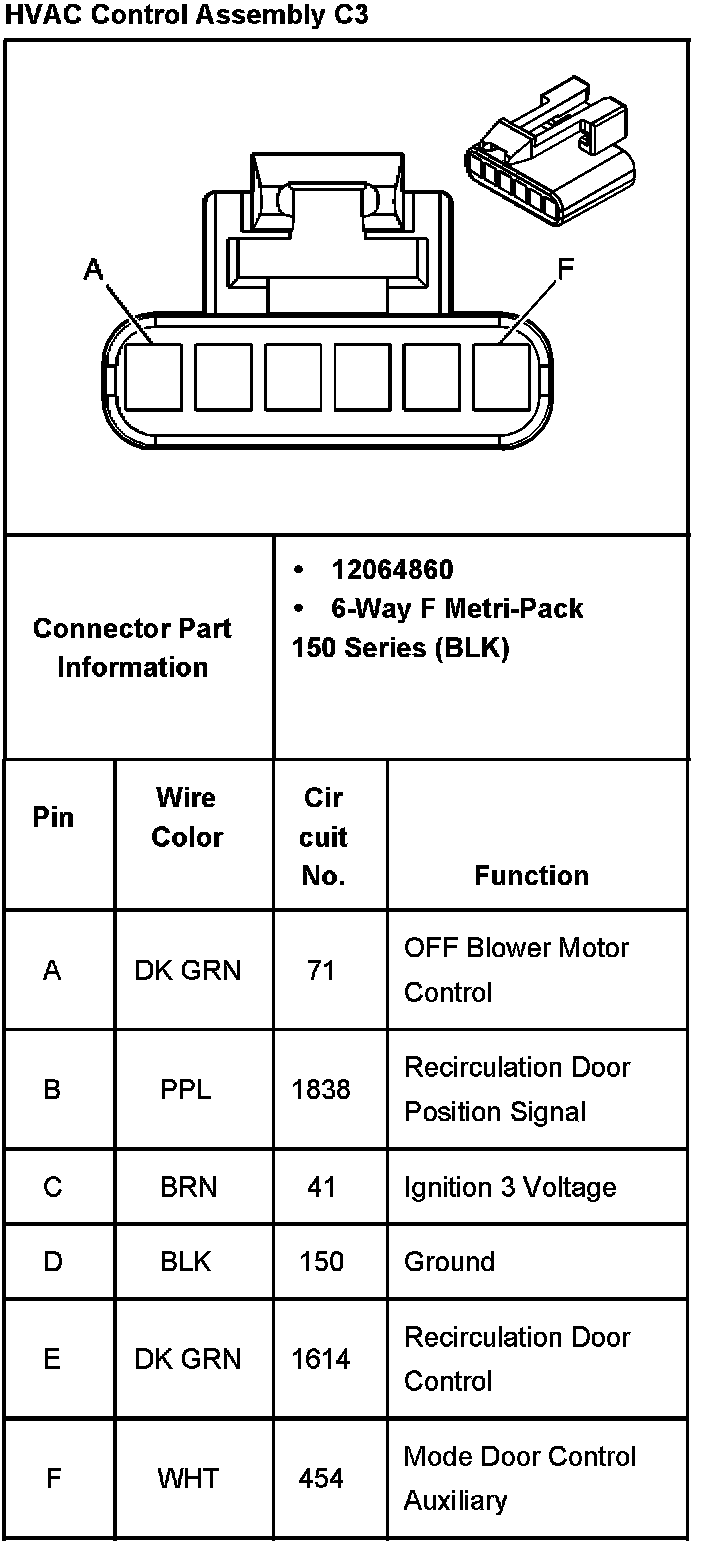

HVAC Control Assembly C3:
