Park Brake Cable Replacement - Left Rear
Park Brake Cable Replacement - Left RearCaution: Refer to Brake Dust Caution in Service Precautions.
Removal Procedure
1. Release the tension from the park brake cable system.
2. Raise and support the vehicle. Refer to Vehicle Lifting.

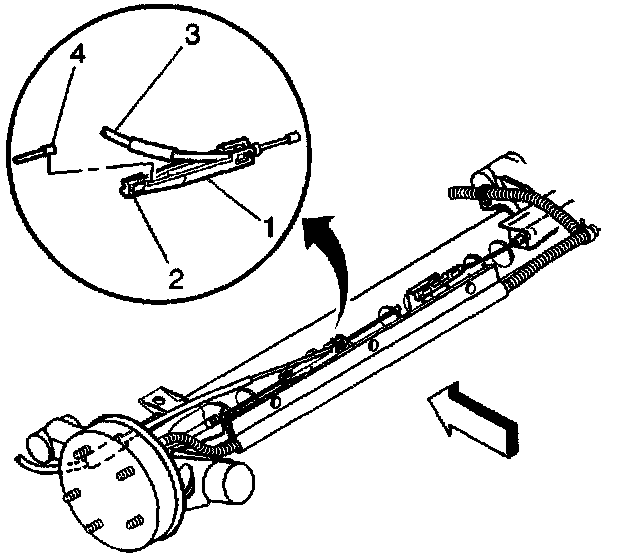

3. Release the left rear cable end (4) from the cable equalizer (1).

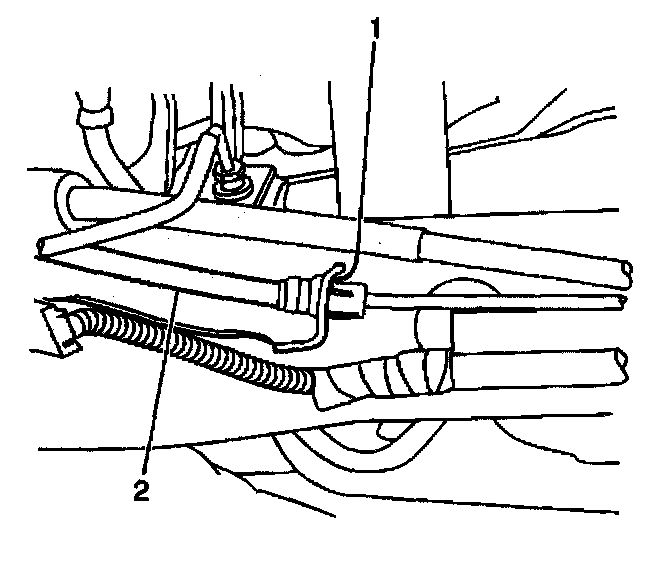

4. Release the park brake cable conduit end fitting (1) from the axle bracket.
5. Remove the left rear tire and wheel assembly.
6. Remove the brake drum.
7. Using a flat-bladed screwdriver, depress the visible retaining tab on the park brake cable fitting, then tilt the released side of the cable end back into the backing plate.
8. Rotate the park brake cable to expose the other retaining tab.

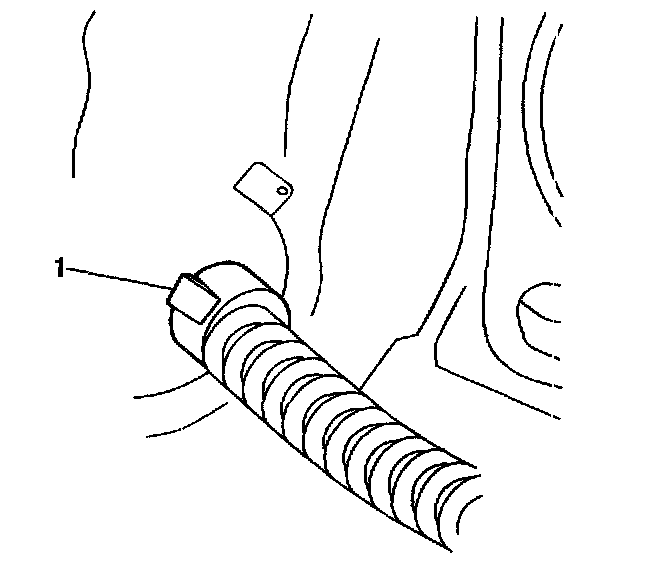

9. Using a flat-bladed screwdriver, depress the remaining retaining tab on the park brake cable fitting, and release the cable fitting from the backing plate.
10. Move the majority of the cable return spring back through the opening in the backing plate.
11. Push the cable toward the rear of the vehicle, just enough to clear the cable end from the slot on the park brake lever.
12. Using a flat-bladed screwdriver, lift the cable to fully release the cable from the lever, then remove the cable.
Installation Procedure
1. Insert the park brake cable through the opening in the backing plate. Only install the cable return spring to just rearward of the spring positioning tab on the backing plate.
2. Push the cable forward toward the rear of the vehicle, along the outside of the secondary brake shoe, until the cable end is positioned just past the slot on the park brake lever.
3. While holding the cable in position from front to rear, move the cable end to the back of the park brake lever.
4. Press the cable down into the slot on the lever, then pull the cable forward to the front of the vehicle to secure the cable end to the slot.
5. While continuing to pull the cable away from the lever, insert a flat-bladed screwdriver into the opening on the lever to prevent the cable from lifting out of the slot on the lever.
6. Move the cable return spring through the opening in the backing plate.

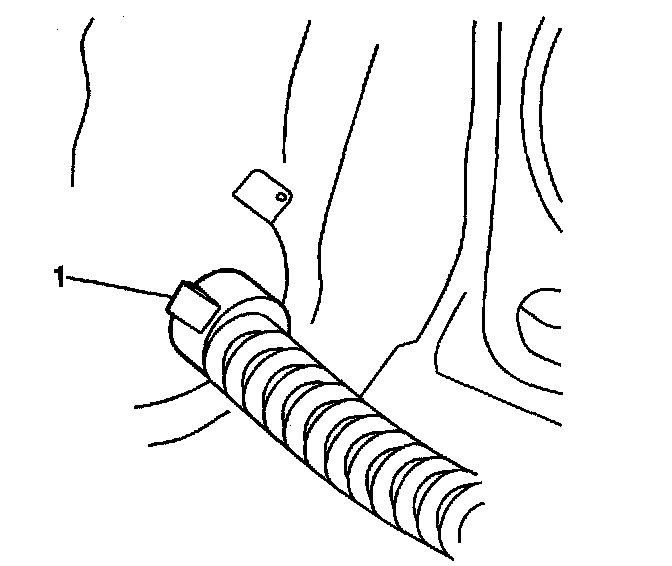

7. Secure the cable fitting to the backing plate. Attempt to pull the park brake cable free of the backing plate, to ensure that the retaining tabs (1) on the fitting are properly secured.
8. Install the brake drum.
9. Install the left rear tire and wheel assembly.
10. Secure the park brake cable conduit end fitting (1) to the axle bracket.
11. Press the cable firmly to secure the cable conduit end fitting to the axle bracket. Attempt to pull the cable away from the bracket to ensure that the cable is properly seated.
12. Secure the cable end (4) to the cable equalizer (1).
13. Lower the vehicle. Refer to Vehicle Lifting.
14. Restore the tension to the park brake cable system.
