Master Cylinder Fluid Level Sensor Replacement

Master Cylinder Fluid Level Sensor Replacement

Removal Procedure

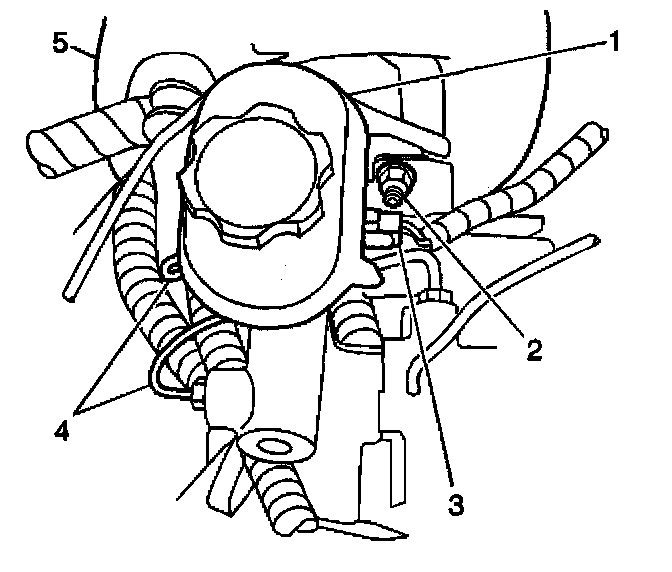

1. Disconnect the electrical connector (3) from the brake fluid level sensor.

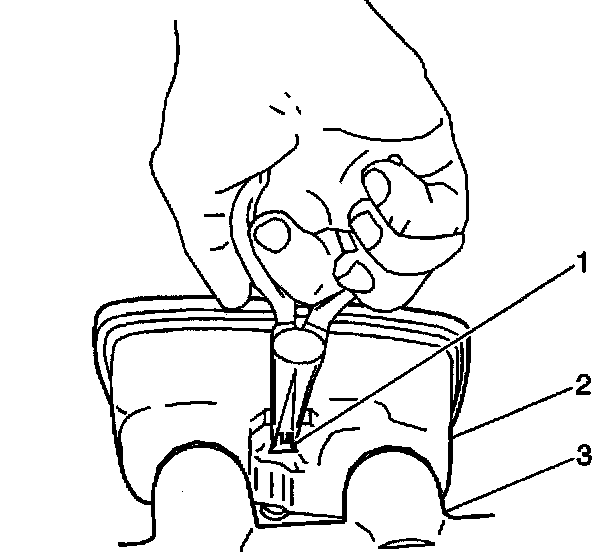

2. Using needle nose pliers, carefully depress the retaining tabs on the end of the brake fluid level sensor (1), and press the sensor through the reservoir (2) to remove.

Installation Procedure





1. Install the brake fluid level sensor to the master cylinder reservoir.
Press the sensor into place to secure the sensor retaining tabs.

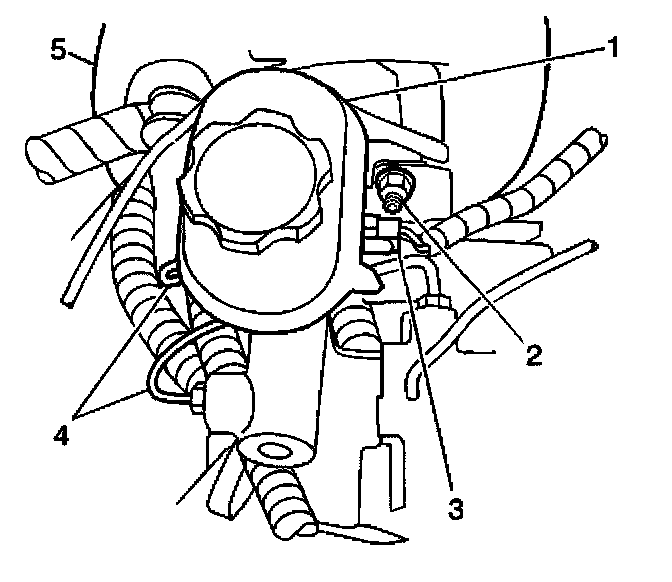

2. Connect the electrical connector (3) to the brake fluid level sensor.
