Roof Side Rail Weatherstrip Replacement

Roof Side Rail Weatherstrip Replacement

Removal Procedure

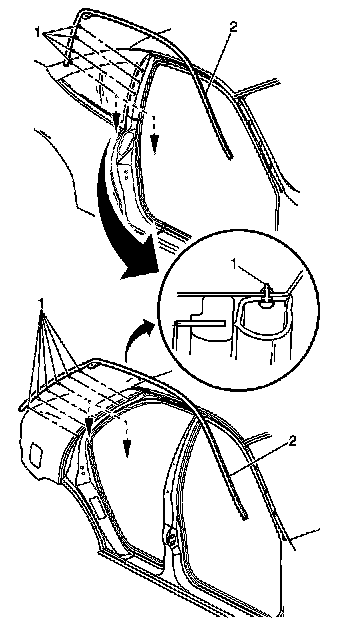

1. Pull off the roof auxiliary weatherstrip (2) from the roof flange beginning from the front pillar weatherstrip.
2. Use a flat-bladed took to disengage the retainers (1) at the rear column.
3. Remove the weatherstrip from the roof.

Installation Procedure




1. Position the roof weatherstrip by the roof.
2. Install the push-in retainers (1) until fully seated.
3. Press the remainder of the weatherstrip onto the roof flange.
