Sunroof / Moonroof Panel: Service and Repair

SUNROOF WINDOW REPLACEMENT

REMOVAL PROCEDURE

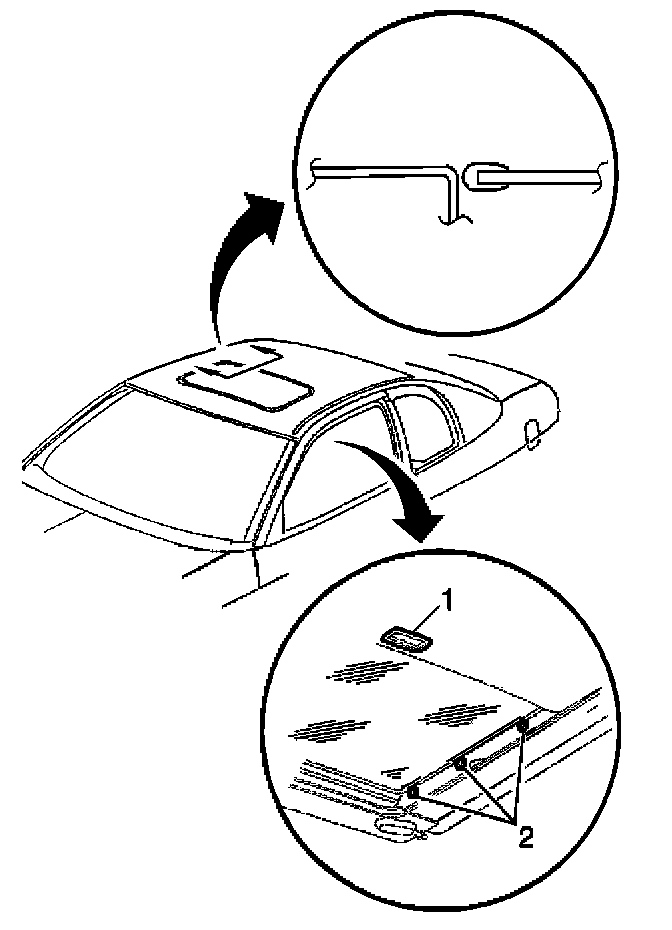

1. Open the sunshade (1).
2. Close the sunroof window.




3. Remove the sunroof window screws (2) from the sunroof track.
4. Remove the sunroof window from the roof opening.

INSTALLATION PROCEDURE




1. Install the sunroof window into the roof opening with the sunroof logo facing rearward.
2. Install the sunroof window screws (2) to the sunroof track.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the sunroof window screws to 4 N.m (35 lb in).

3. Check and adjust the sunroof window as necessary.
