Sun Shade: Service and Repair

SUNROOF SUNSHADE PANEL REPLACEMENT

REMOVAL PROCEDURE
1. Place the sunroof into the full vent position.

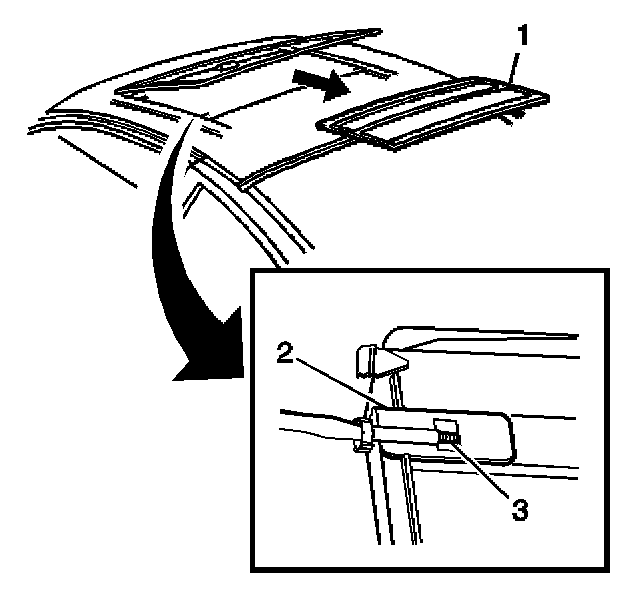

2. Place the sunroof sunshade (1) into the open position.
3. Push the guide (2) on the left front sunroof sunshade toward the middle of the vehicle.
4. Disengage the guide from the track on the left front sunroof sunshade.
5. Slide the sunroof sunshade into the closed position.
6. Push the guide on the left rear sunroof sunshade toward the middle of the vehicle.
7. Disengage the guide on the left rear sunroof sunshade.
8. Remove the sunroof sunshade (1) from the vehicle using the following procedure:
8.1. Pull the sunroof sunshade towards the left side of the vehicle in order to disengage the guides on the right side sunroof sunshade.
8.2. Pull the sunroof sunshade out between the glass panel and the roof.

INSTALLATION PROCEDURE




1. With the sunroof in the full vent position, install the sunroof sunshade (1) into the vehicle between the roof and the glass panel.
2. Position the guides on the right side sunroof sunshade to the guide rail.
3. Engage the guide on the left rear sunroof sunshade to the guide rail using a flat bladed tool.
4. Slide the sunroof sunshade to the open position.
5. Engage the guide on the left front sunroof sunshade to the guide rail.
6. Check for proper operation of the sunshade.
7. Close the sunroof.
