Instrument Panel Compartment - Striker Replacement

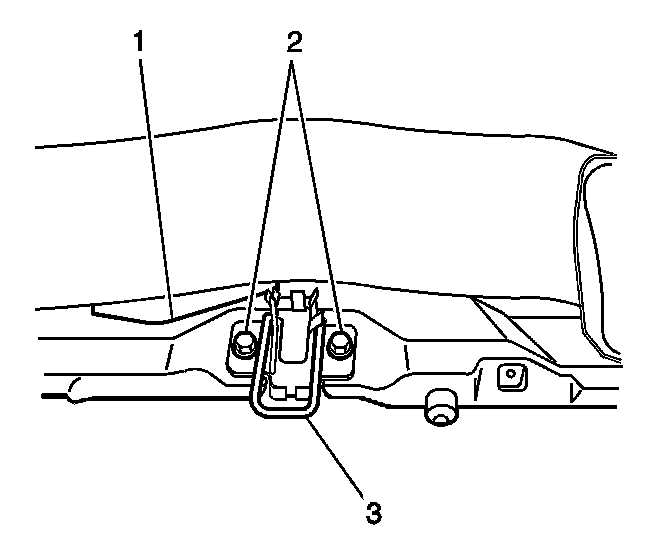

STRIKER REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENTREMOVAL PROCEDURE
1. Remove the instrument panel (I/P) trim pad.
2. Open the compartment door.
3. Remove the screws (2) holding the compartment striker (3) to the I/P carrier (1).
4. Remove the striker (3) from the I/P carrier (1).

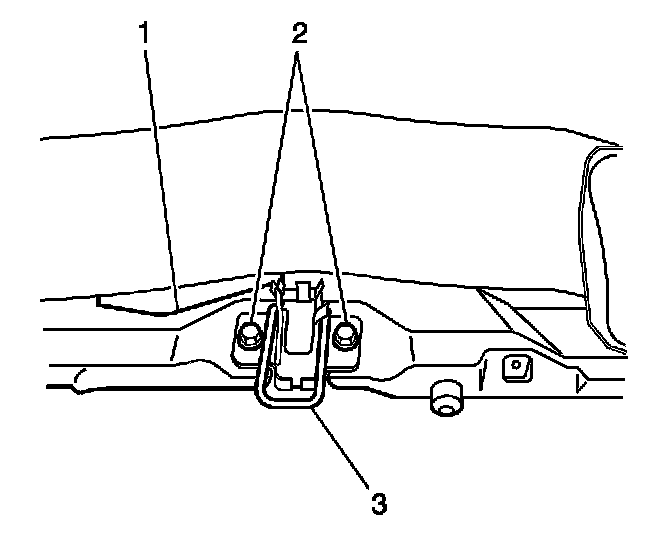

INSTALLATION PROCEDURE
1. Install the striker (3) to the I/P carrier (1).
2. Install the screws (2) to the striker (3).
3. Adjust the striker (3) for proper alignment to the I/P compartment.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 2.3 N.m (20 lb in).
4. Install the I/P trim pad.
