Instrument Panel Compartment - Latch Replacement
LATCH REPLACEMENT - INSTRUMENT PANEL (I/P) COMPARTMENTREMOVAL PROCEDURE
1. Open the instrument panel (I/P) compartment door.
2. Remove the reinforcement cover from the I/P door.

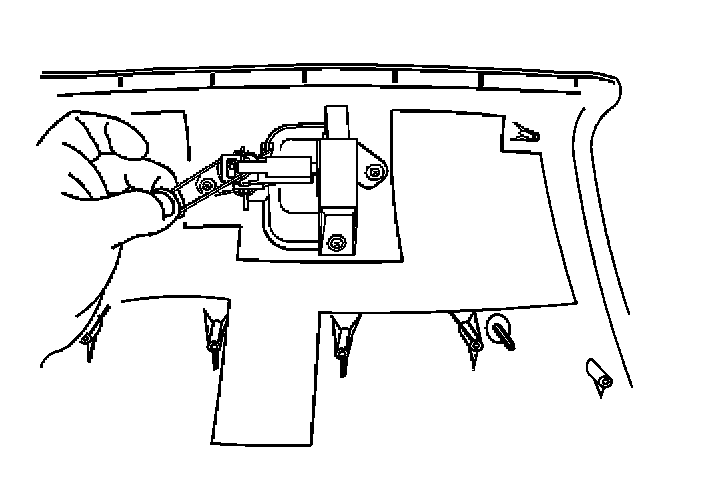

3. Disconnect the anti-rattle device from the door latch mounting point, if equipped.

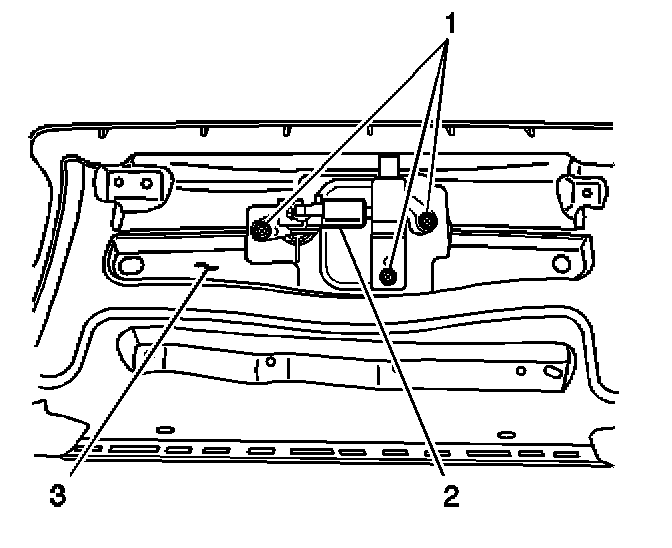

4. Remove the screws (1) from the I/P compartment door latch (2).
5. Remove the door latch (2) from the I/P compartment door (3).

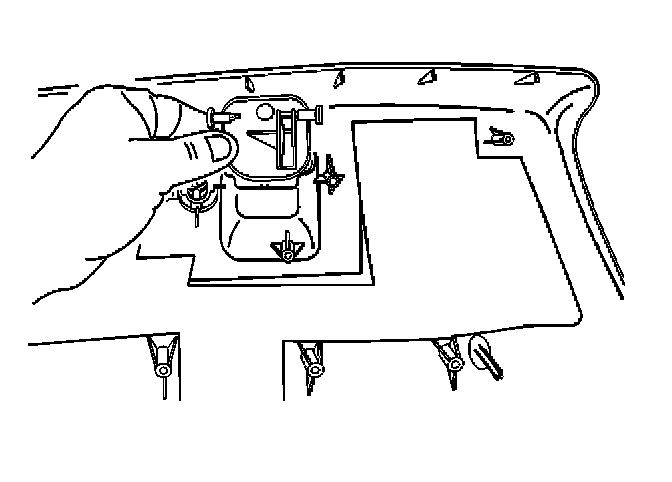

6. Remove the anti-rattle device from the door latch (2), if equipped.
7. Remove the door latch handle from the I/P compartment door.
INSTALLATION PROCEDURE
1. Install the door latch handle to the I/P compartment door.

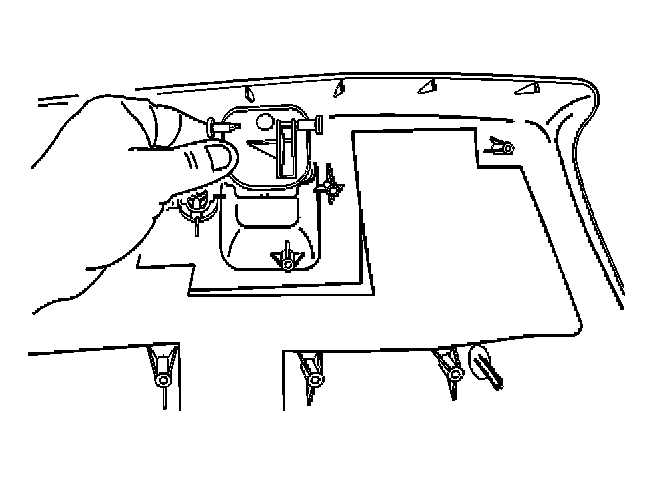

2. Install the anti-rattle device to the door latch (2), if equipped.
3. Install the door latch (2) to the I/P compartment door (3).

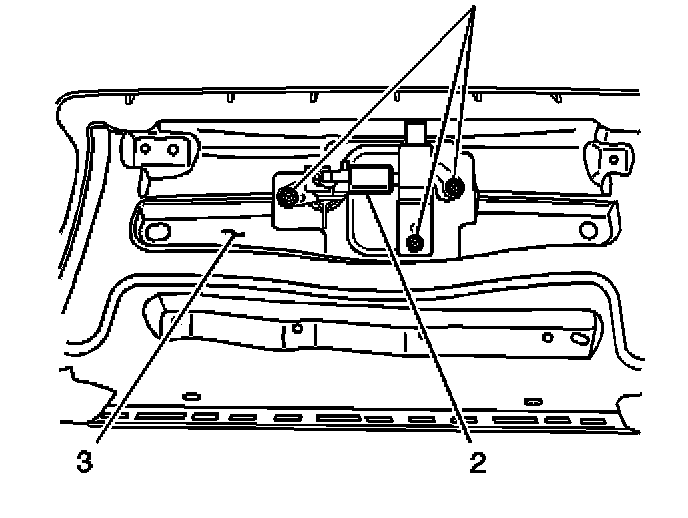

4. Install the I/P compartment door latch screws (1).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 2.3 N.m (20 lb in).

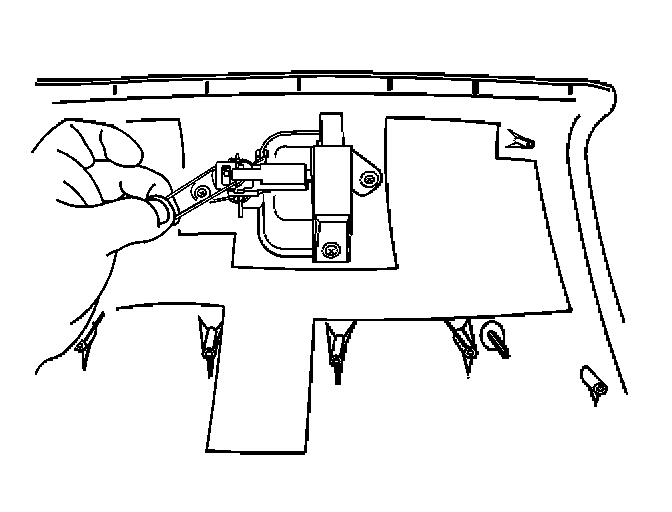

5. Connect the anti-rattle device to the door latch mounting point, if equipped.
6. Install the inner I/P reinforcement cover to the I/P compartment door.
7. Inspect the I/P compartment door for proper operation.
8. Close the I/P compartment door.
