Removal and Replacement

Instrument Panel Compartment Door Lock Cylinder Replacement

Removal Procedure

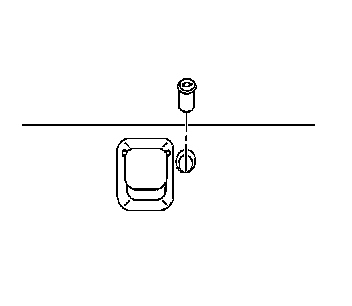

1. Remove the instrument panel (I/P) latch.




2. Depress the lock cylinder retaining tab (1) located on the bottom of the lock cylinder (2).




3. Press out the lock cylinder from the I/P compartment door.

Installation Procedure




1. Align the lock cylinder to the opening in the I/P compartment door.

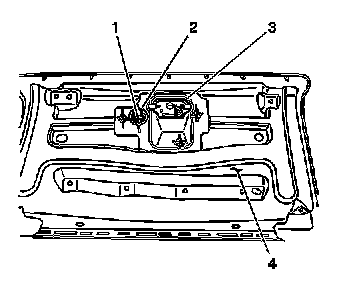

2. Depress the retaining tab (1) while installing the lock cylinder (2) to the I/P compartment door (4).
3. Install the I/P latch to the I/P compartment door.
4. Test the I/P compartment door and lock cylinder for proper operation.
