Hood Insulator / Pad: Service and Repair

Hood Insulator Replacement

Tools Required

J 38778 Door Trim Pad and Garnish Clip Remover

Removal Procedure

1. Open the hood.

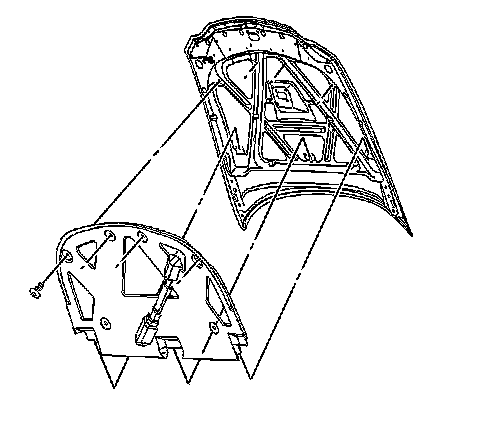

2. Use the J 38778 to remove the hood insulator push-in retainers from the hood.
3. Remove the hood insulator from the hood.

Installation Procedure




1. Position the hood insulator to the hood.
2. Install the hood insulator push-in retainers until fully seated.
3. Close the hood.
