Rear Bumper Shock Absorber: Service and Repair

Rear Energy Absorber Replacement

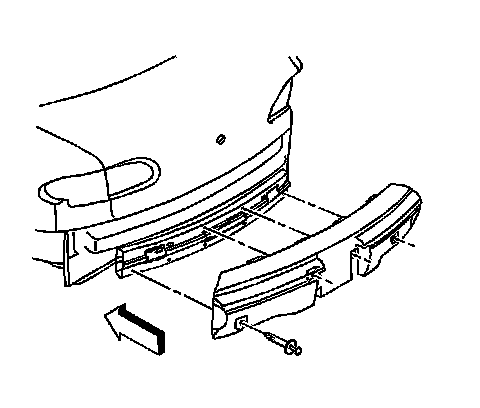

Removal Procedure




1. Remove the rear bumper fascia.
2. Remove the push-in retainers from the rear bumper energy absorber.
3. Remove the rear bumper energy absorber from the impact bar.

Installation Procedure




1. Position the rear bumper energy absorber to the impact bar.
2. Install the push-in retainers to the rear bumper energy absorber.
3. Install the rear bumper fascia.
