Zone 9

1. Remove the key from the ignition switch.
2. To enable the inflatable restraint side impact module, skip to Step 9. To enable the entire SIR system, continue to Step 3.




3. Connect the inflatable restraint IP module inline connector located under the instrument panel, left of the steering column.

Passenger Shorting Bar:

4. Install the CPA to the inflatable restraint IP module inline connector.

Driver Shorting Bar:

5. Connect the inflatable restraint steering wheel module coil connector.




6. Install the CPA to the inflatable restraint steering wheel module coil connector, located under the instrument panel, left of the steering column.

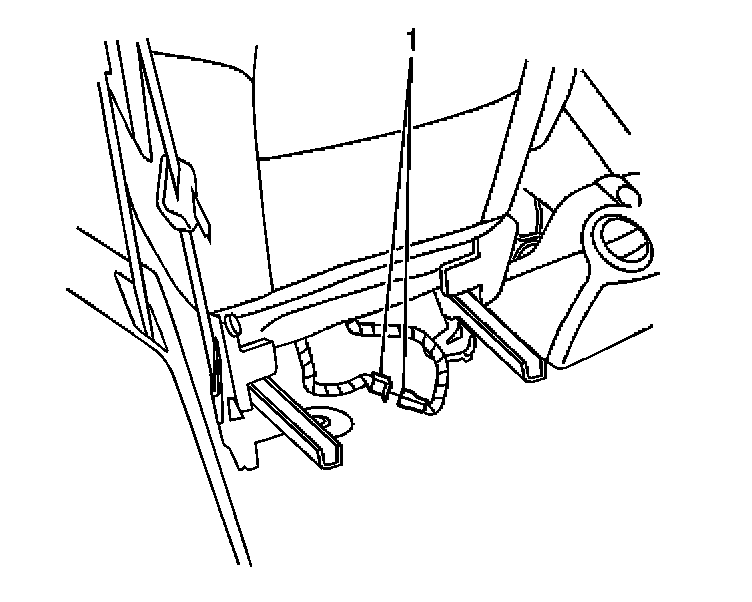

7. Connect the side impact module - LF connector located under the driver seat.
8. Install the CPA to the inflatable restraint side impact module - LF connector.
9. Connect the side impact module - RF connector located under the passenger seat.
10. Install the CPA to the inflatable restraint side impact module - RF connector.

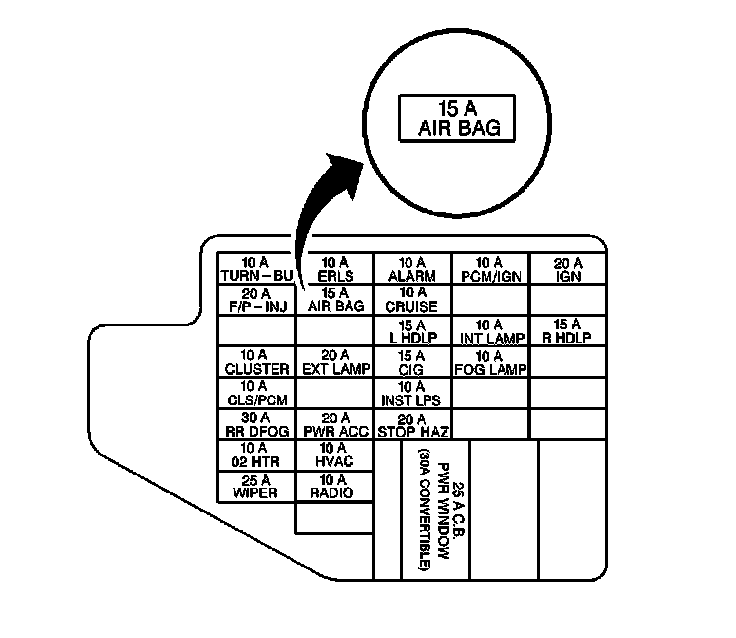

11. Install the AIR BAG Fuse to the LH IP wiring harness junction block.
12. Install the LH IP outer trim cover.
13. Staying well away from both air bags, turn ON the ignition.
13.1. The AIR BAG indicator will flash 7 times.
13.2. The AIR BAG indicator will then turn OFF.
14. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
