Zone 1

1. Remove the key from the ignition switch.

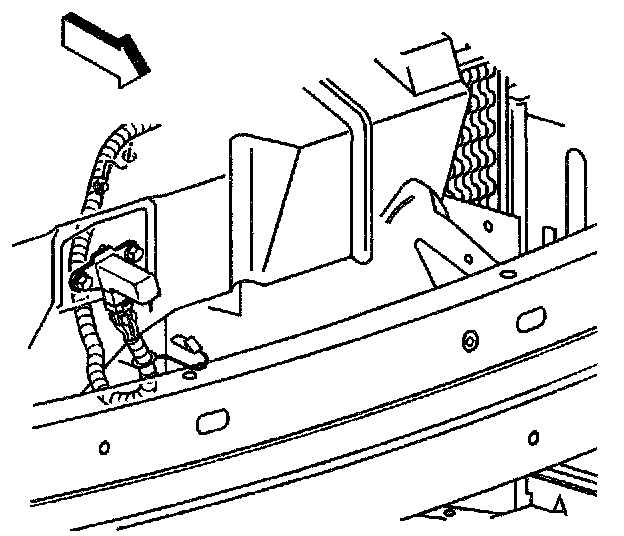

2. Connect the EFS connector to the EFS.




3. Install the CPA to the EFS connector.
4. Install the hood closeout filler panel.

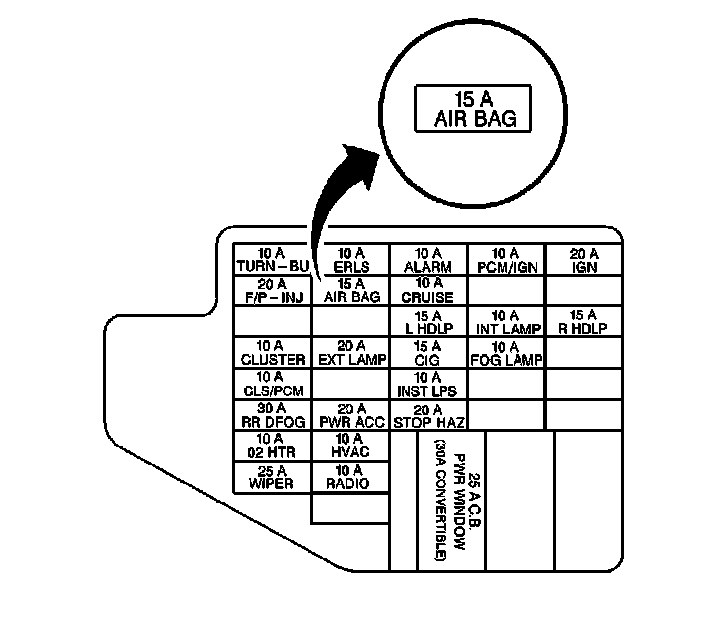

5. Install the AIR BAG Fuse to the LH IP wiring harness junction block.
6. Install the LH IP outer trim cover.
7. Staying well away from both air bags, turn ON the ignition.
7.1. The AIR BAG indicator will flash 7 times.
7.2. The AIR BAG indicator will then turn OFF.
8. Perform Diagnostic System Check - Restraint Systems if the AIR BAG indicator does not operate as described.
