Speaker Replacement - Rear
SPEAKER REPLACEMENT - REARREMOVAL PROCEDURE
1. Remove the rear window panel trim.

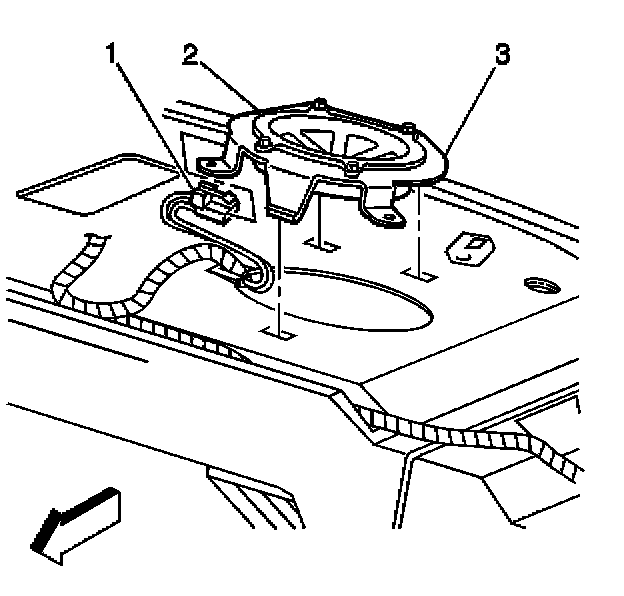

2. Press the tab on the front of the rear speaker spacer (3).
3. Remove the speaker spacer (3) lifting up and out.
4. Disconnect the electrical connector (1) from the speaker (2).
5. Remove the rear speaker spacer (3) from the vehicle.

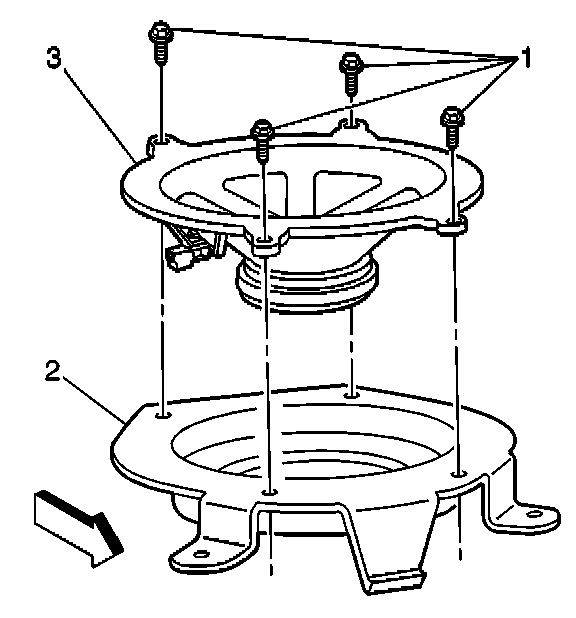

6. Remove the screws (1) from rear speaker (3).
7. Remove the rear speaker (3) from the spacer (2).
INSTALLATION PROCEDURE
1. Install the rear speaker (3) to the rear speaker spacer (2).
2. Install the rear speaker screws (1) to the rear speaker (3).
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the screws to 1.5 N.m (13 lb in).
3. Connect the electrical connector (1) to the rear speaker (2).

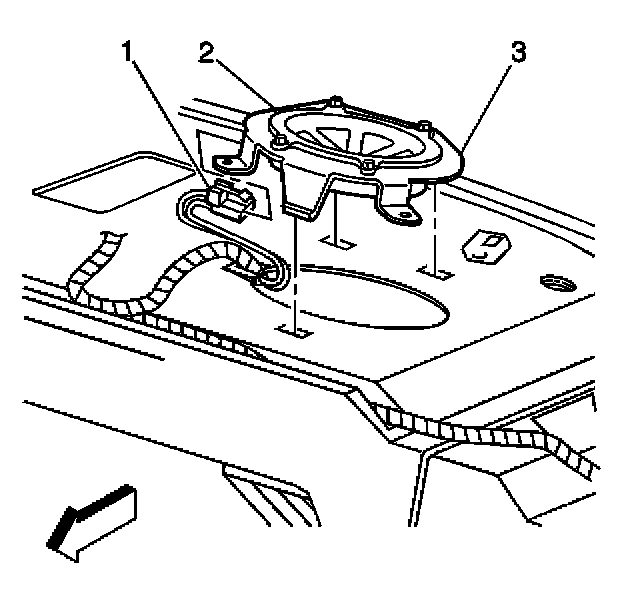

4. Position the rear speaker spacer tabs (3) to the slots in the rear shelf.
5. Install the rear speaker (2) to the rear shelf by pressing into place until fully seated.
6. Install the rear window panel trim.
