Speaker Replacement - Front Door

SPEAKER REPLACEMENT - FRONT DOOR

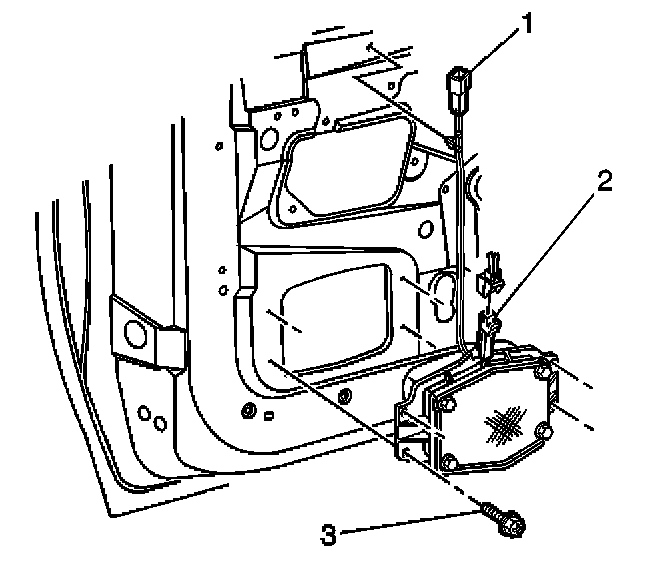

REMOVAL PROCEDURE




1. Remove the front door trim panel.
2. Disconnect the electrical connectors (1) and (2) from the speaker.
3. Remove the bolts (3) from the speaker.
4. Remove the front door speaker from the front door.

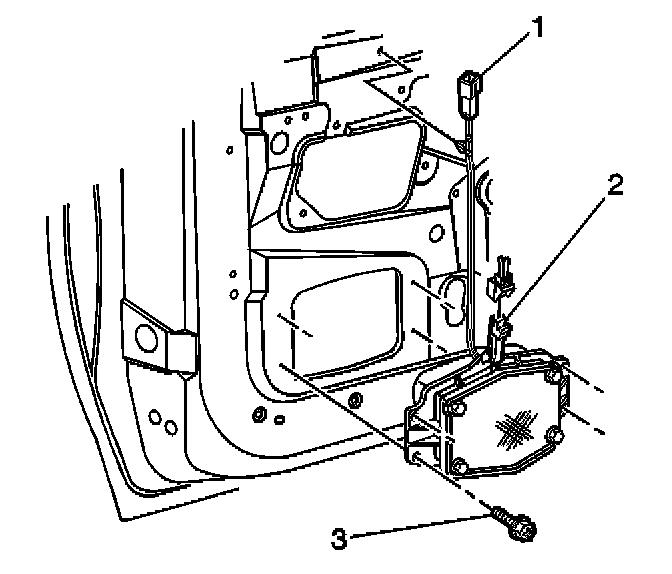

INSTALLATION PROCEDURE




1. Install the front door speaker to the door.
2. Install the front door speaker bolts (3) to the speaker.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 1.9 N.m (17 lb in).

3. Connect the electrical connector (1) and (2) to the speaker.
4. Install the front door trim panel.
