Automatic Transmission Oil Cooler Fitting Replacement
Automatic Transmission Oil Cooler Fitting ReplacementRemoval Procedure
Notice: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Position a drain pan under the vehicle.
3. Remove the oil cooler hoses from the transaxle oil cooler fittings.

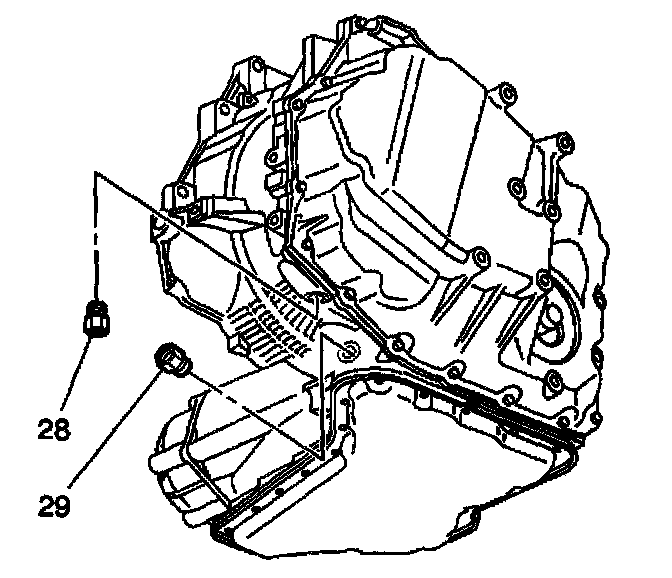

4. Remove the oil cooler fittings (28,29) from the transaxle.
Installation Procedure
Notice: Refer to Fastener Notice in Service Precautions.
Important: The correct thread engagement is critical. Cross-threaded fittings can achieve proper tightness and still leak.
1. Install the oil cooler fittings (28,29) to the transaxle.
Tighten the fittings to 38 Nm (28 ft. lbs.).
2. Install the oil cooler hoses to the transaxle oil cooler fittings.
3. Lower the vehicle.
Notice: Refer to Transmission Overfill.
4. Adjust the fluid level.
5. Inspect for fluid leaks.
6. Remove the drain pan from under the vehicle.
