Canister Purge Solenoid: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID VALVE REPLACEMENT

REMOVAL PROCEDURE

IMPORTANT: The EVAP purge valve is located on the upper intake manifold.




1. Remove the fuel injector sight shield.

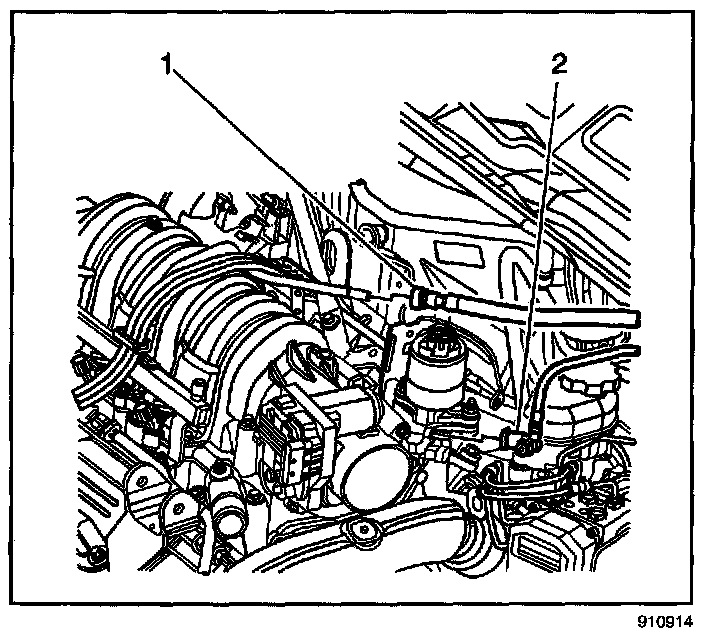

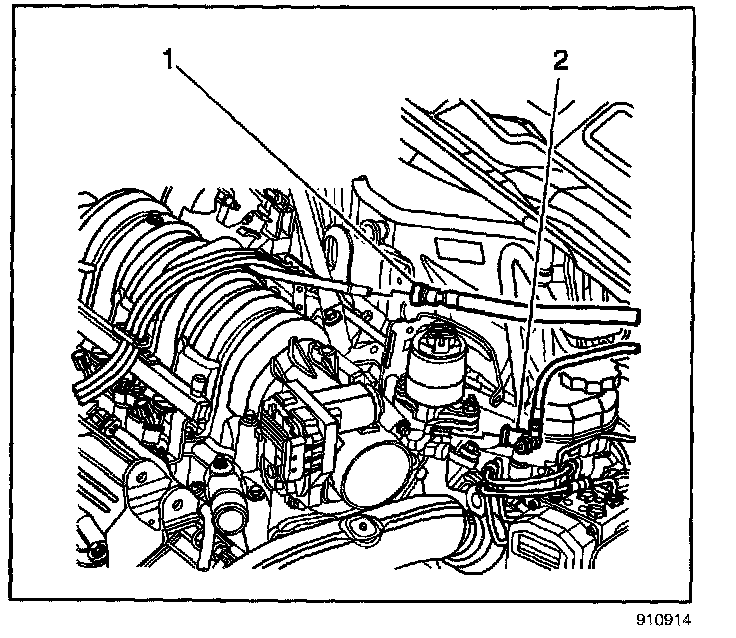

2. Disconnect the EVAP canister purge valve purge pipe (2).
3. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.




4. Remove the EVAP purge valve bolt (2).

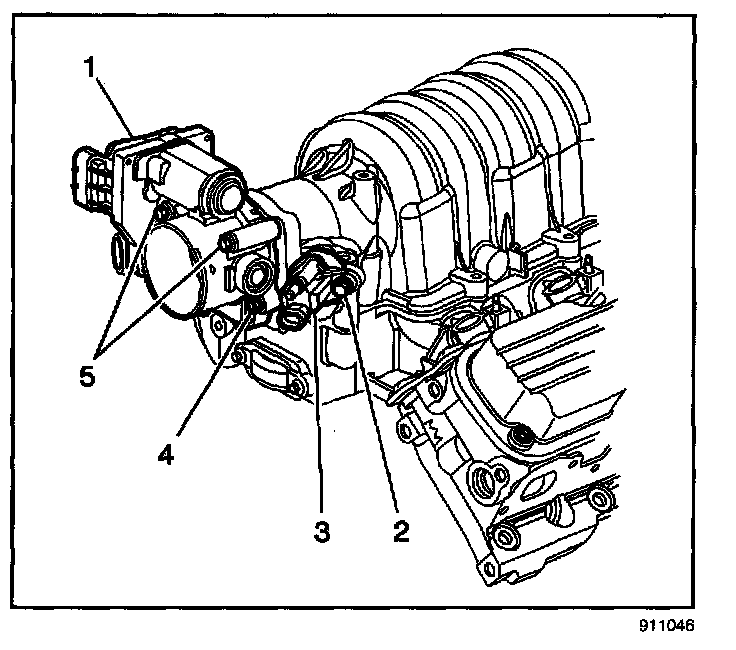

5. Remove the EVAP purge valve (3).


INSTALLATION PROCEDURE




1. Install the EVAP purge valve (3).

NOTE: Refer to Fastener Note in Service Precautions.

2. Install the EVAP purge valve bolt (2).

Tighten
Tighten the bolt to 20 N.m (15 lb ft)

3. Connect the evaporative emission (EVAP) canister purge valve electrical connector.




4. Connect the EVAP canister purge valve purge pipe (2).
5. Install the fuel injector sight shield.
