Instrument Panel, Gauges and Warning Indicators
>>
Heads Up Display Unit
>>
Diagrams
>>
Connector Views
Connector Views
Head Up Display (HUD) (With RPO Code UV6):

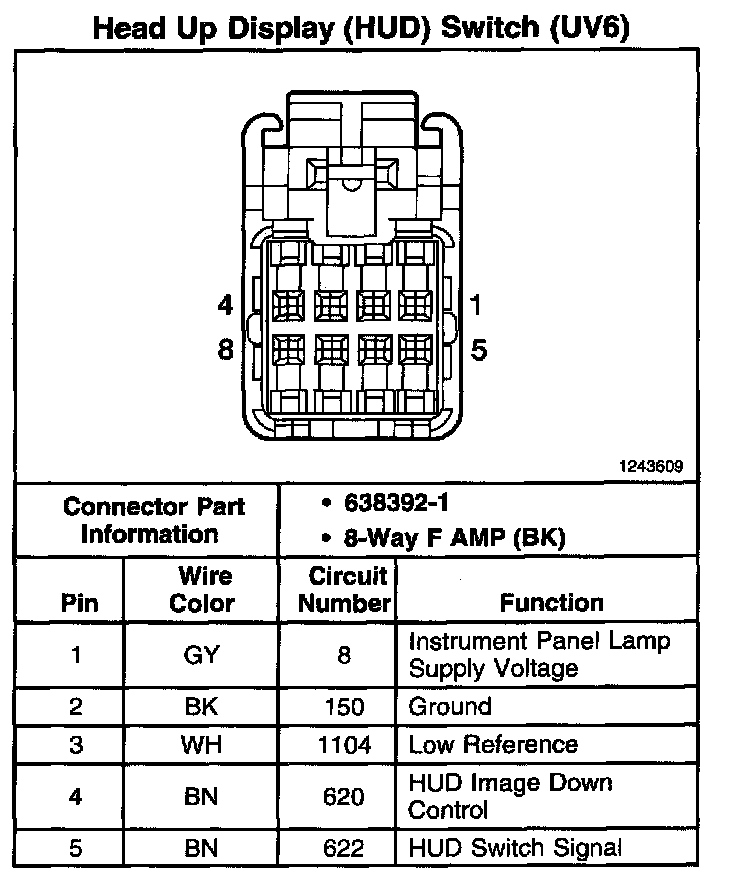

Head Up Display (HUD) Switch (With RPO Code UV6) Part 1:

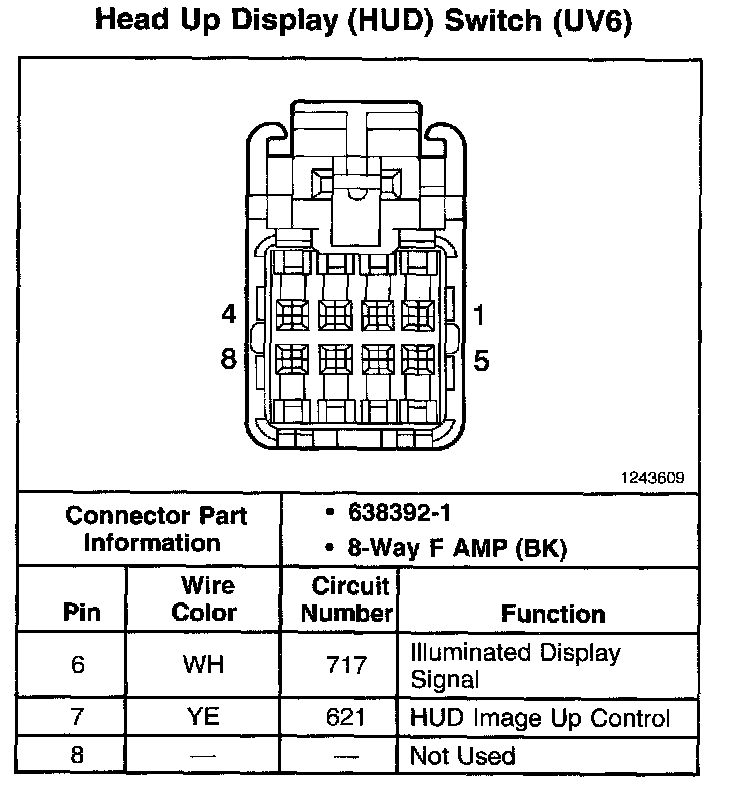

Head Up Display (HUD) Switch (With RPO Code UV6) Part 2:
