Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2004
>>
Grand Prix V6-3.8L VIN 2
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Door View
>>
Front Passenger Door
Front Passenger Door

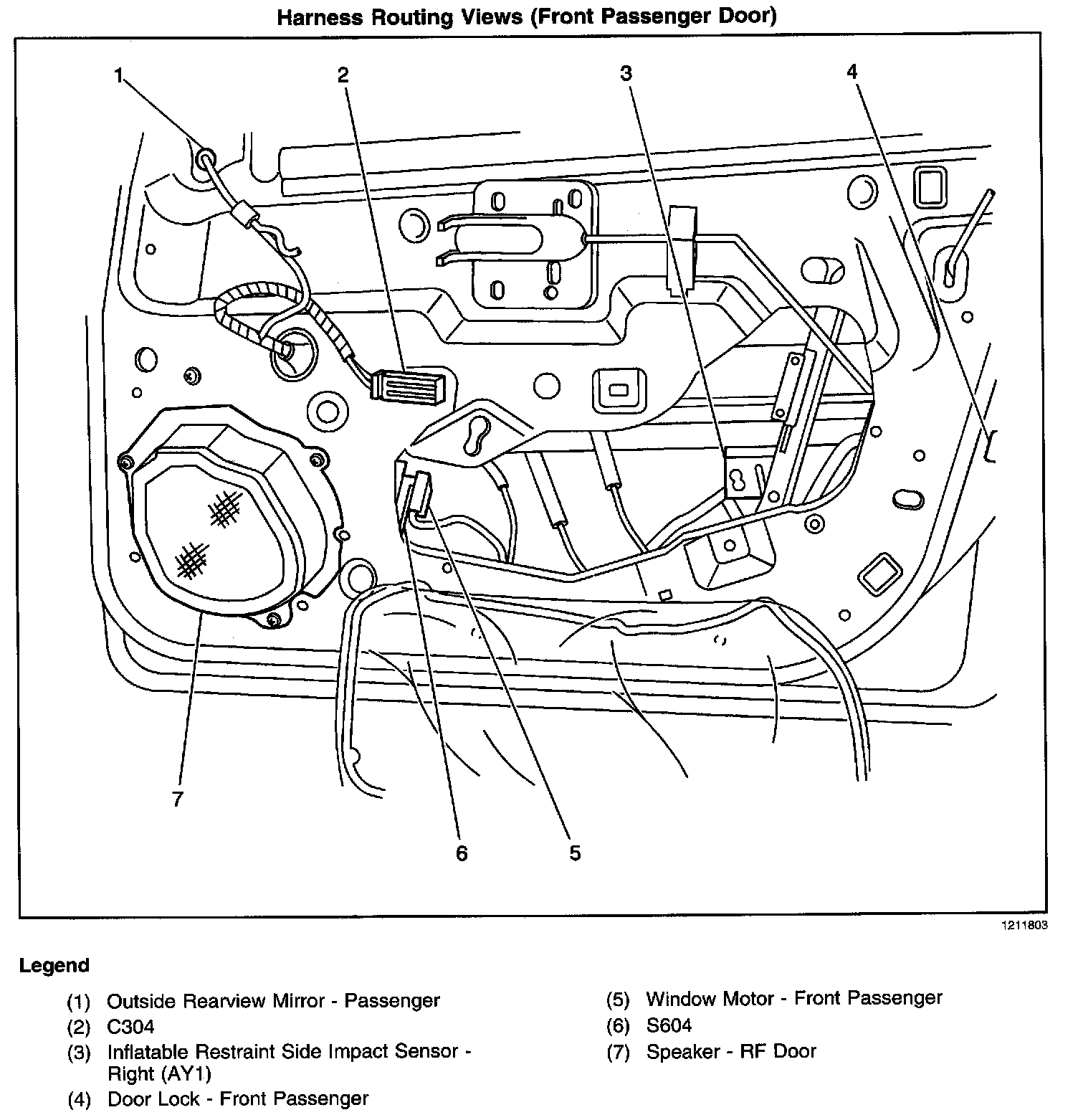

Harness Routing Views (Front Passenger Door):

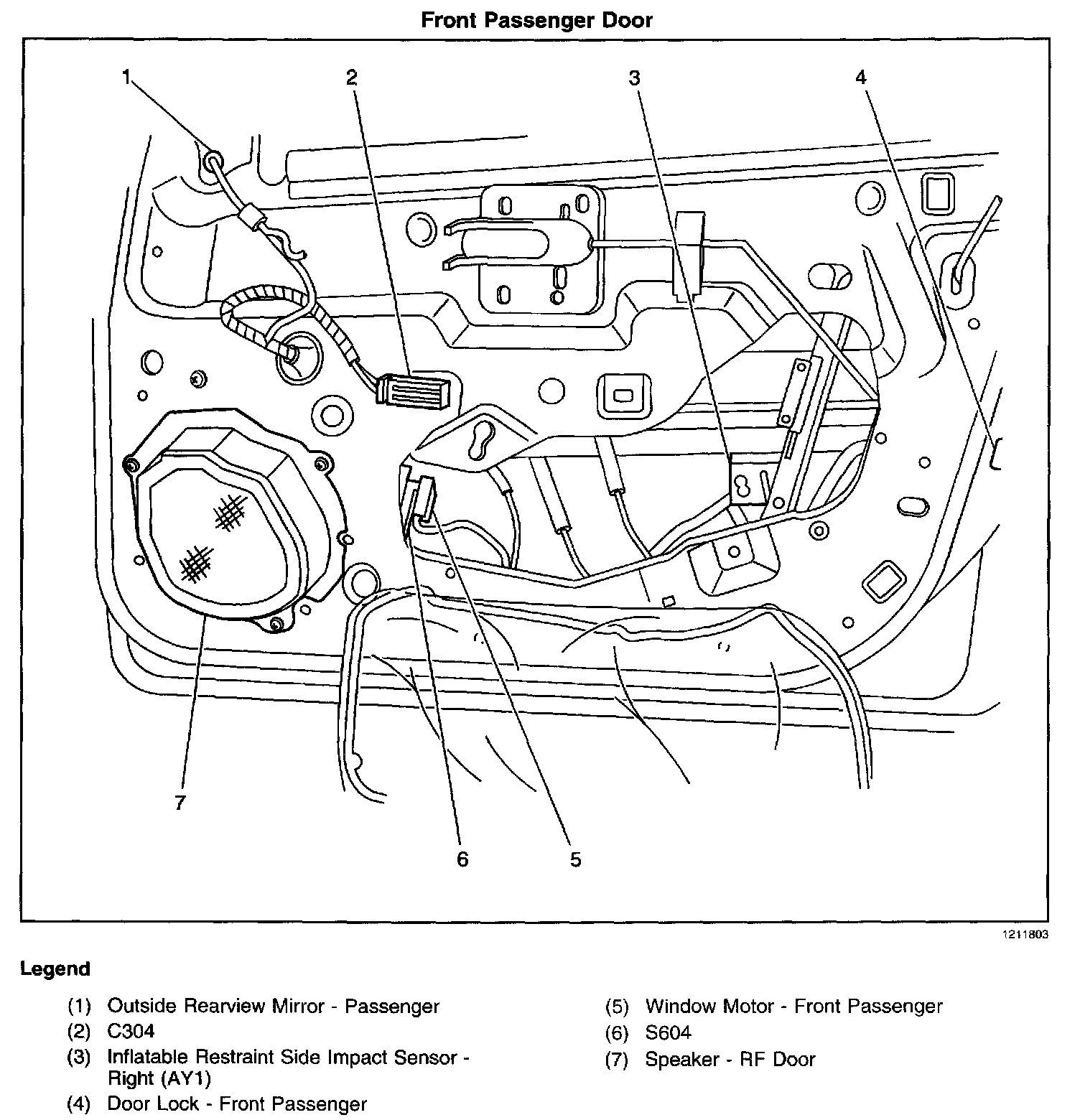

Front Passenger Door:
