Front Suspension

Stabilizer Shaft Link Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.

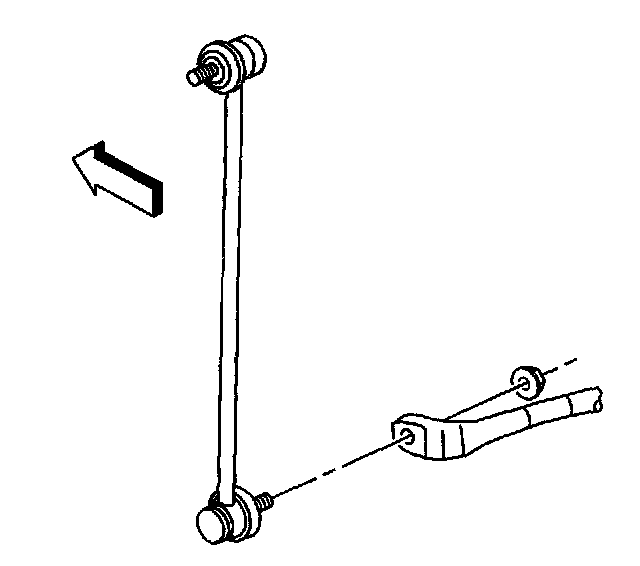

2. Disconnect the stabilizer link from the stabilizer shaft.

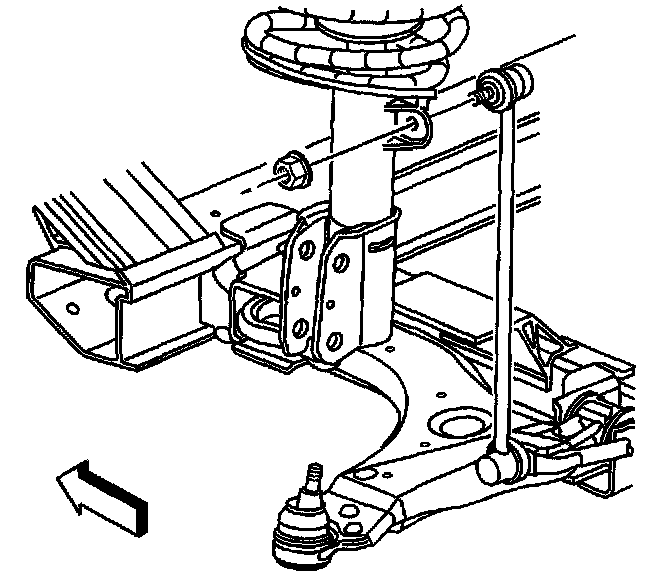

3. Disconnect the stabilizer link from the strut assembly and remove from the vehicle.

Installation Procedure

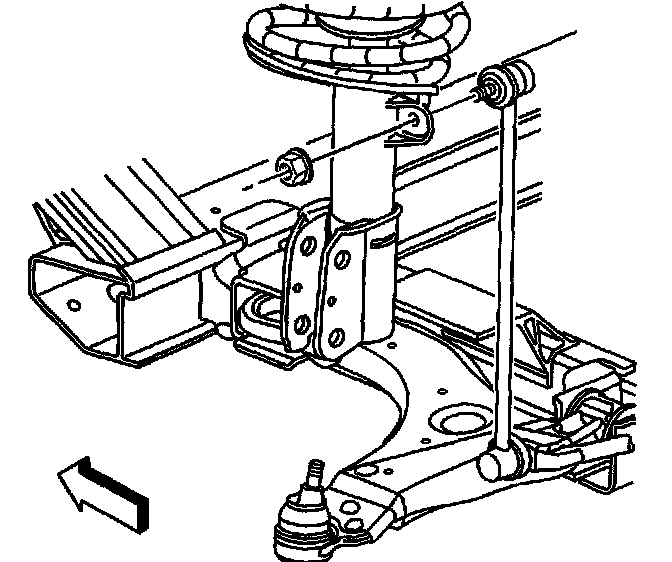

1. Connect the stabilizer link to the strut assembly.

Notice: Refer to Fastener Notice in Service Precautions.

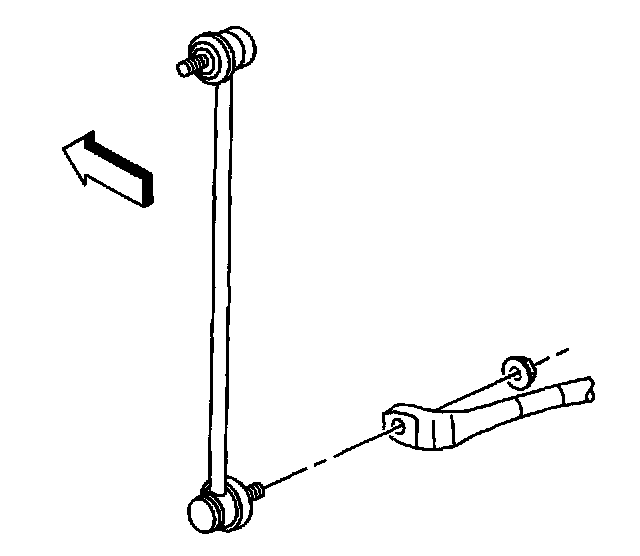

2. Connect the stabilizer link to the stabilizer shaft.
Tighten the stabilizer link nuts to 45 Nm (33 ft. lbs.).
3. Lower the vehicle.
