Front Steering Knuckle: Service and Repair

Steering Knuckle Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the bearing/hub assembly.
3. Disconnect the front lower control arm ball stud.
4. Disconnect the outer tie rod end from the steering knuckle.

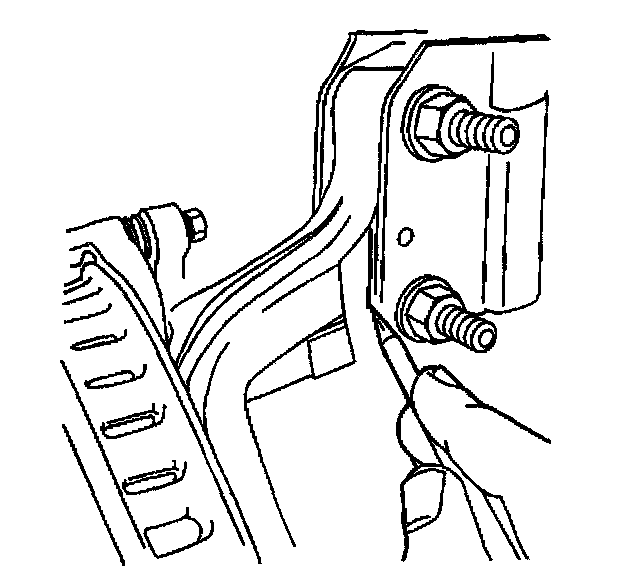

5. Scribe the strut to the knuckle.





6. Remove the bolts and nuts attaching the strut to the knuckle.
7. Remove the knuckle from the vehicle.

Installation Procedure





1. Install the knuckle to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the through bolts and nuts attaching the strut to the knuckle.
Tighten the through bolts and nuts to 120 Nm (89 ft. lbs.).
3. Connect the outer tie rod to the steering knuckle.
4. Connect the front lower control arm ball stud to the knuckle.
5. Install the front wheel drive shaft bearing.
6. Lower the vehicle.
7. Inspect the front wheel alignment and adjust if necessary.
