Pontiac
>>
2004
>>
Grand Prix V6-3.8L SC VIN 4
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G200
G200

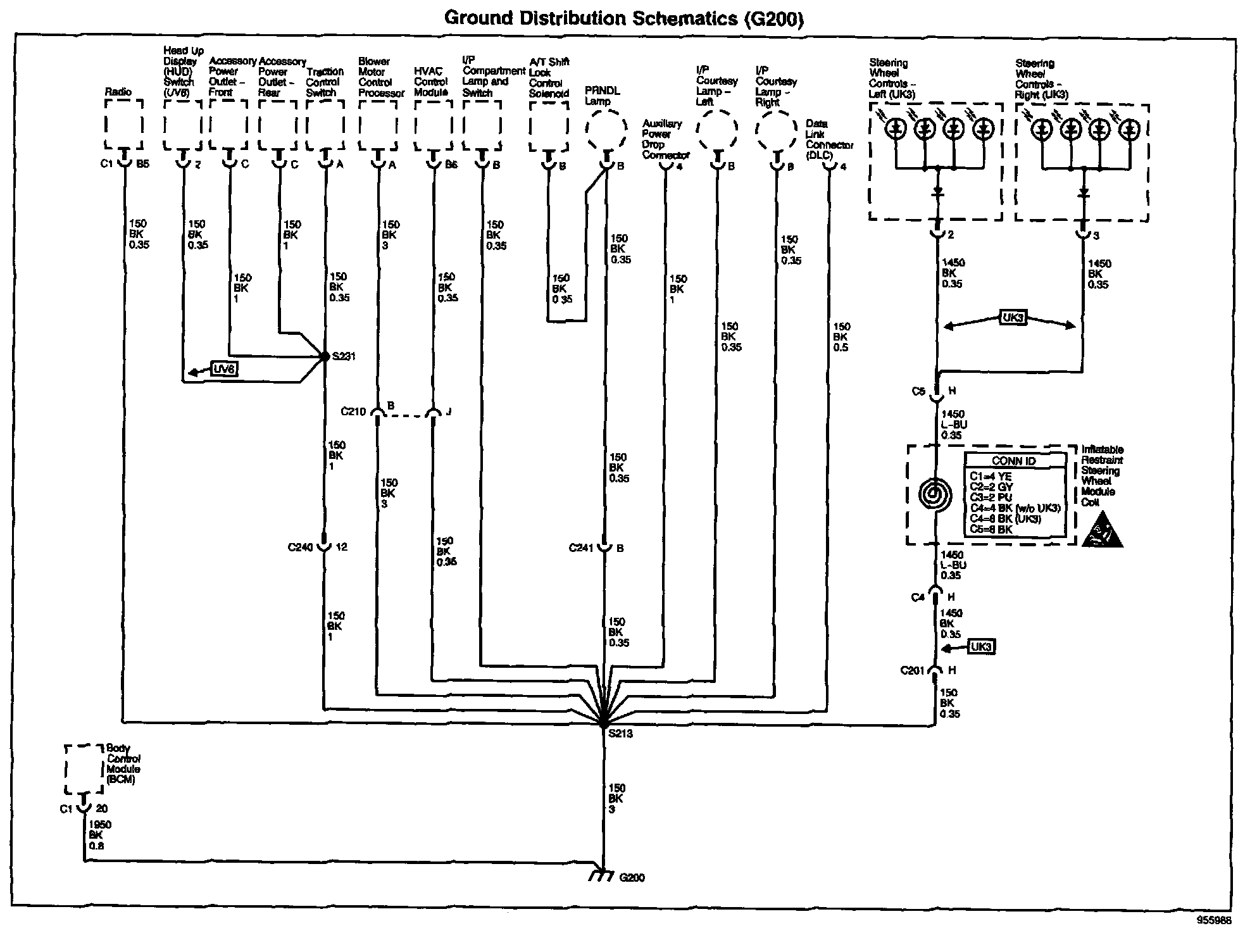

Ground Distribution Diagram 4:
