Air Outlet Replacement - Rear Floor

AIR OUTLET REPLACEMENT - REAR FLOOR

REMOVAL PROCEDURE




1. Remove the floor carpet.

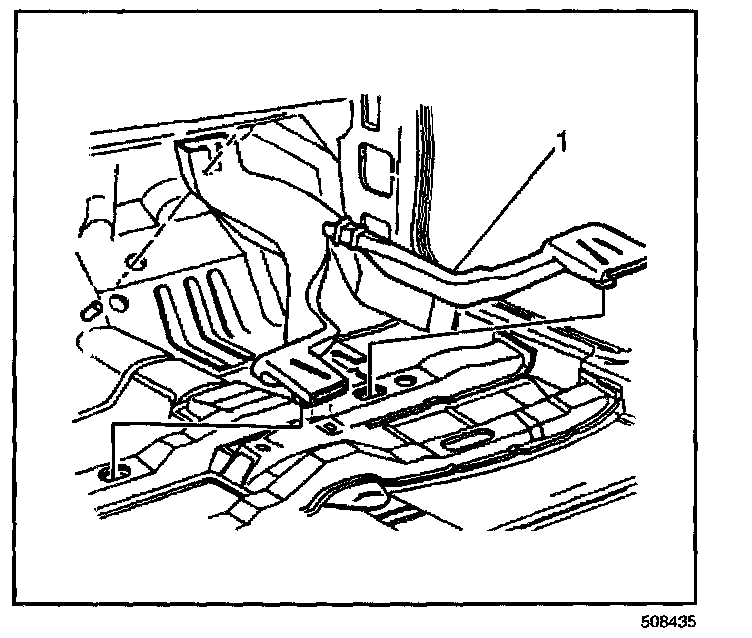

2. Remove the rear floor air outlet duct (1) from the holes in the floor reinforcement.
3. Disconnect the rear floor air outlet duct from the heater core outlet cover.
4. Remove the rear floor air outlet duct.

INSTALLATION PROCEDURE




1. Install the rear floor air outlet duct.
2. Connect the rear floor air outlet duct to the heater core outlet cover.

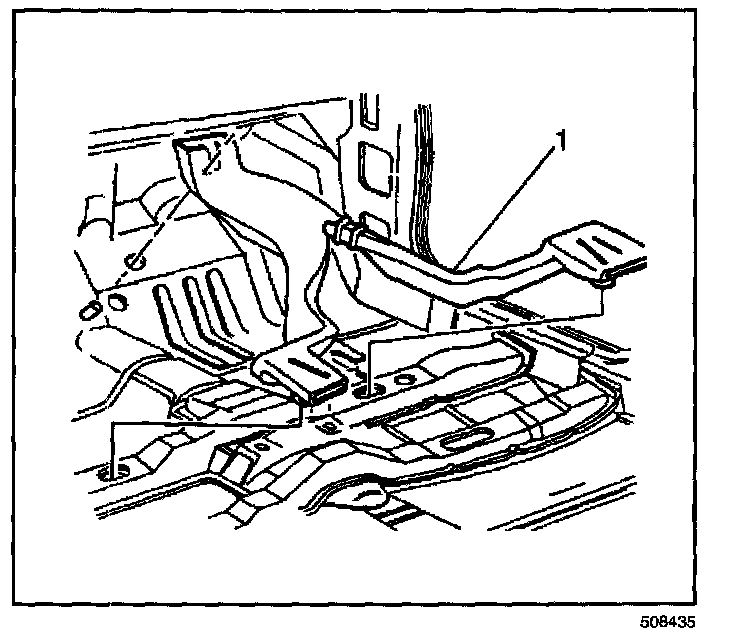

3. Position the rear floor air outlet duct (1) to the holes in the floor reinforcement and press into place.
4. Install the floor carpet.
