Air Outlet Replacement - Instrument Panel - Right

AIR OUTLET REPLACEMENT - INSTRUMENT PANEL - RIGHT

REMOVAL PROCEDURE

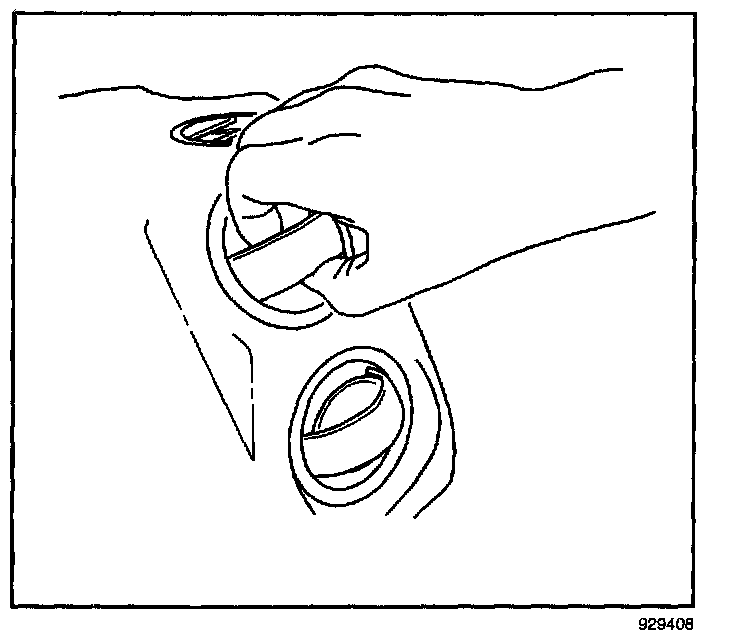

1. Firmly grasp the instrument panel (I/P) air outlet.
2. Pull the I/P air outlet from the retainer.

INSTALLATION PROCEDURE

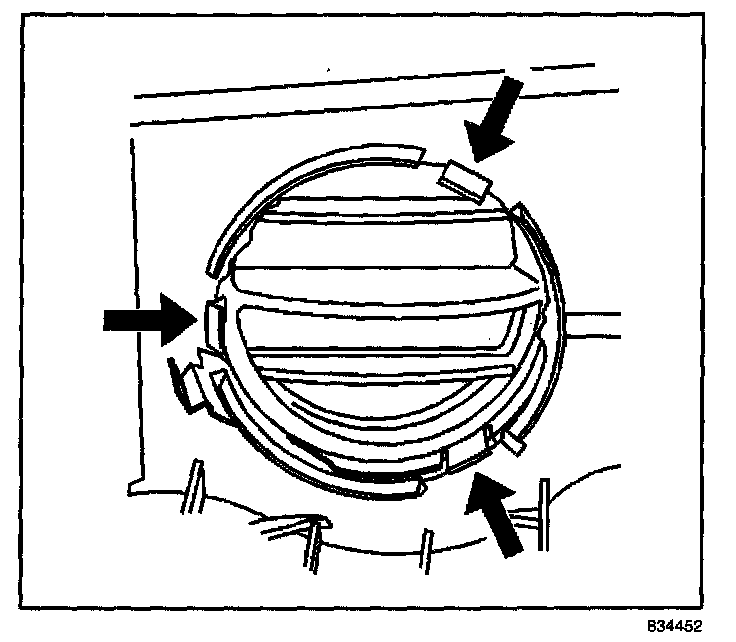

1. Align the I/P air outlet tabs to the retainer slots.
2. Press the I/P air outlet into place.
