Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2004
>>
Grand Prix V6-3.8L SC VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
EVAP System Overview
EVAP System Overview

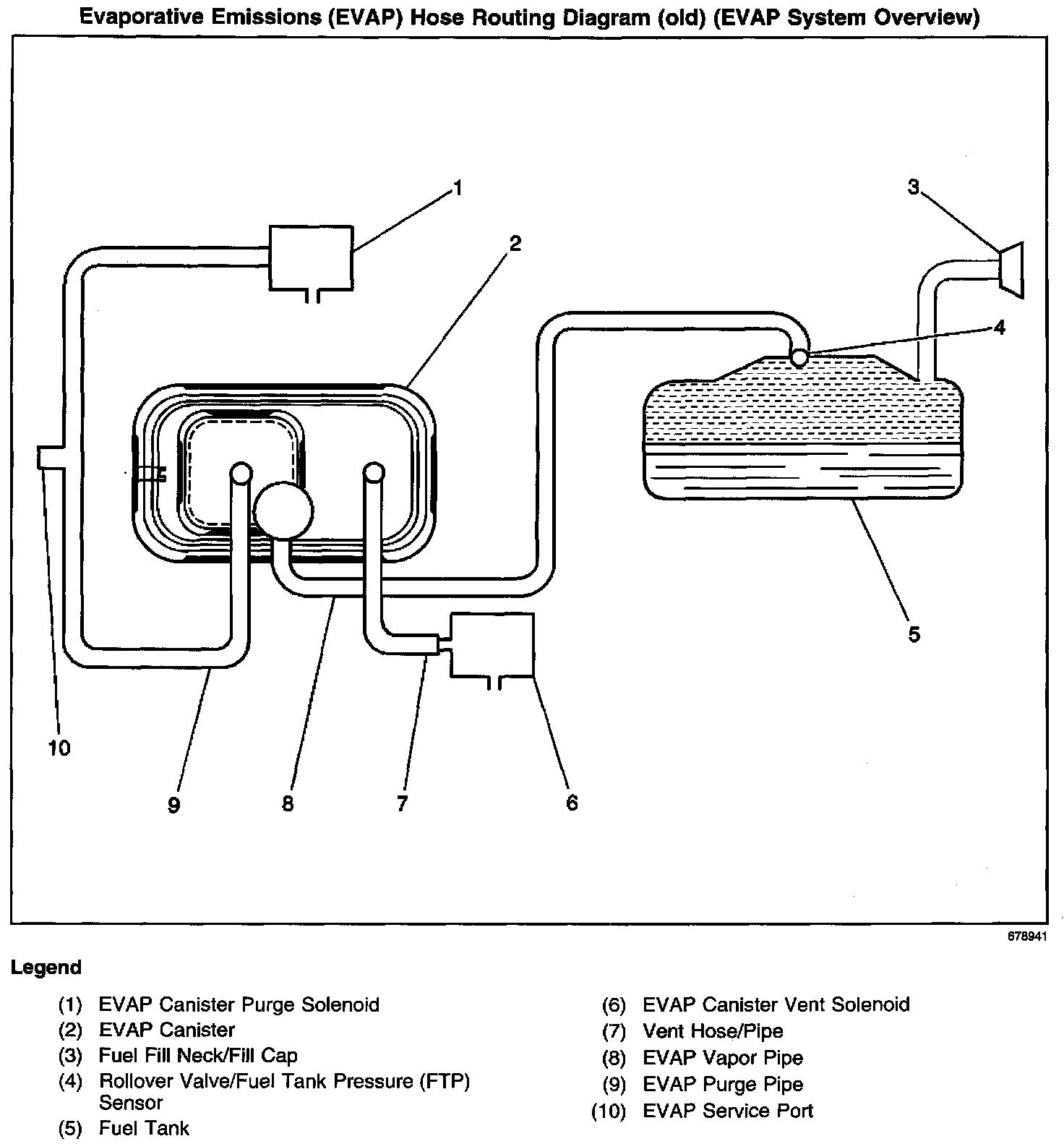

Evaporative Emissions (EVAP) Hose Routing Diagram (old) (EVAP System Overview):
